The first time you soldered up a surface mount component you may have been surprised "these are really small parts!" and there's dozens of different names too! QFN, TDFN, SOIC, SOP, J-Lead, what do they mean and how can you tell how big they are? Now you can have a reference board at your fingertips, with this snazzy PCB reference ruler.

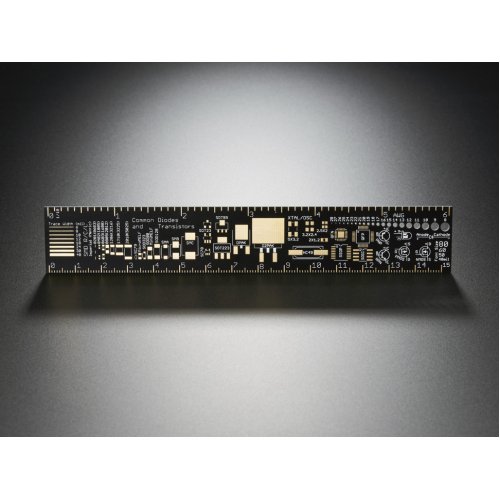

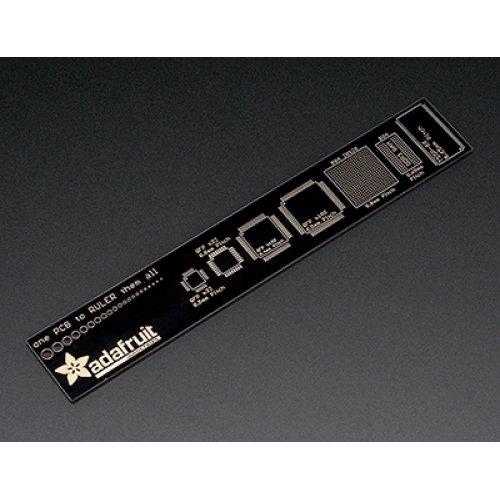

Measuring approx 1" x 6", this standard-thickness FR4, gold plate ruler has the most common component packages you'll encounter. It also has font size guide, trace-width diagram, and a set of AWG-sized drills so you can gauge your wire thicknesses.
The v2, which is basically the same thing as the original but Inches are marked with 1/10" rather than the more common 1/8". The centimeter side is still 0.1cm marks.
Technical Details:
- Dimensions: 25.6mm / 1" x 153.98mm / 6.06" x 1.64mm / 0.06"
- Weight: 12.07g
Useful Links:
Adafruit 1554 PCB Ruler v2 - 6 inch - 1554
- Brand: Adafruit
- Product Code:Ada-PCB-Ruler-1554
- Reward Points:6
- Availability:In Stock
-
रo 630.12
- Ex Tax:रo 534.00
- Price in reward points:564
-
- 50 or more रo 552.24
- 285 or more रo 549.88
