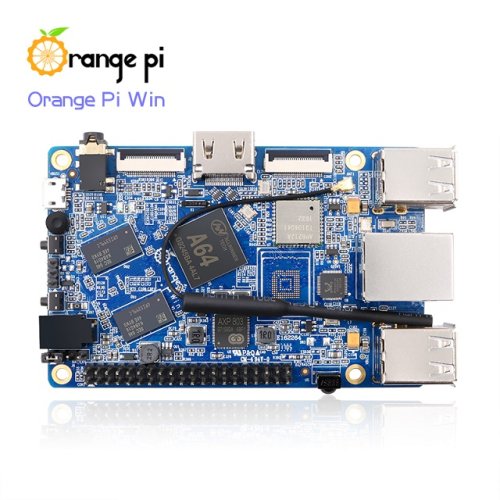

It’s an open-source single-board computer. It can run Android 6.0 , Ubuntu, Debian, Raspbian Image, it uses the AllWinner A64 SoC, and has 1GB(Win) DDR3 SDRAM.
Specifications:
| CPU | A64 Quad-core Cortex-A53 64bit |
| GPU | Mali400MP2 GPU |
| Supports OpenGL ES 2.0 and OpenVG1.1 | |
| Memory (SDRAM) | 1GB (shared with GPU) |
| Onboard Storage | TF card (Max. 32GB) / NOR flash(2MB)/eMMC（Default empty） |
| Onboard Network | 1000M/100M Ethernet RJ45 |
| Onboard WIFI+BT | AP6212, IEEE 802.11 b/g/n,BT4.2 |
| Video Input | A CSI input connector Camera |
| Supports 8-bit YUV422 CMOS sensor interface | |
| Supports CCIR656 protocol for NTSC and PAL | |
| Supports SM pixel camera sensor | |
| Supports video capture solution up to 1080p@30fps | |
| Audio Input | MIC, 3.5 mm Jack |
| Video Outputs | LCD |
| Audio Outputs | 3.5 mm Jack, HDMI |
| Power Source | DC input can supply power |
| USB OTG input can supply power | |
| Battery input can supply power | |
| GPIO(1x3) pin | UART, ground. |
| USB 2.0 Ports | Four USB 2.0 HOST, one USB 2.0 OTG |
| Buttons | Power Button(SW2), Reset Button (SW4) |
| Low-level peripherals | 40 Pins Header,compatible with Raspberry Pi B+ |
| LED | Power led & Status led |
| Key | IR input, POWER,Reset |
| Supported OS | Android, Ubuntu, Debian, Raspbian |
| Product size | 93 mm × 60mm |
| Weight | 48g |
Package Includes:
- 1 x Orange Pi Win Development Board
Orange Pi Win Development Board
- Brand: Orange Pi
- Product Code: OPi-Orange-Pi-Win
- Reward Points: 30
- Availability: Order now and get it in 25 days
-
रo 2,985.00
- Price in reward points: 2985
