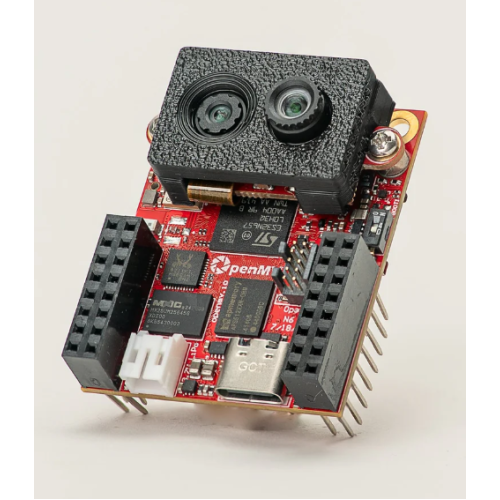

The PAG7936 module is only compatible with the OpenMV N6. The OV5640 module is compatible with the OpenMV Cam RT1062.

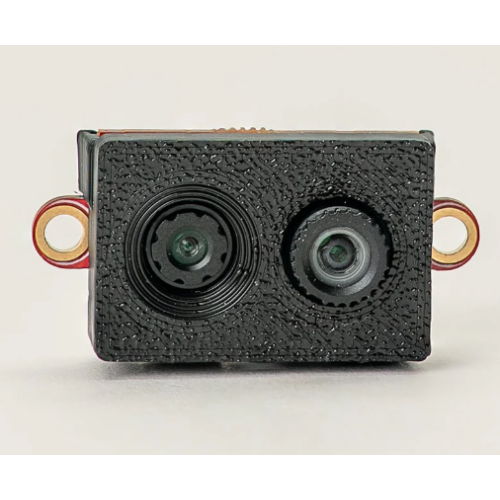

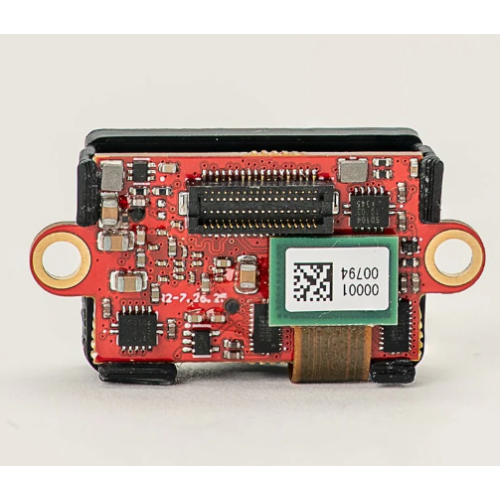

The Multispectral Thermal Camera Module allows your OpenMV Cam to interface with the FLIR® Lepton® 1/2/3 Thermal Imaging sensors for Thermal Vision applications and interface with the PAG7936 1MP 120 FPS Color Global Shutter or OV5640 5MP Color Rolling Shutter sensor at the same time. Now you can process thermal images mixed with color at the same time!

The actual FLIR Lepton Camera Sensor is sold separately which you can buy at the GroupGets Store. The FLIR® Lepton® Camera Sensor modules are export controlled so it's difficult for anyone but GroupGets to sell them.

Applications:

By using thermal imaging your OpenMV Cam can see in the dark in conditions with no external lighting. FLIR® Lepton®s are extremely useful for tracking living things in environments along with being able to measure the temperature of objects.

Specifications:

• Supports the FLIR Lepton 1.x/2.x/3.x sensors.
• Camera Info (PAG7936):
• PAG7936 1MP Color Global Shutter Sensor
• 1280x800 @ 120 FPS
• 640x400 @ 240 FPS
• 320x200 @ 480 FPS
• Optical Format: 1/4"
• Pixel Size: 3um x 3um
• CRA: 20°
• SNR: 36 dB
• Dynamic Range: 64 dB
• Lens Info (PAG7936):
• Max Image Circle Diameter: >6.8mm
• Focal Length: 3.1mm +/- 5%
• Aperture: F2.3 +/- 5%
• Back Focal Length: 1.46mm
• TV Distortion: <-%2.5
• Relative Illumination: >43.3%
• CRA: 20°
• Format: 1/2.7"
• DFOV = <87.7° =HFOV = <79°, VFOV = <49°
• Mount: M8
• IR Cut Filter: 650nm
• @430nm-595nm: Tavg > 90% Tmin > 83%
• @650nm +/- 6nm: T=50%
• Structure: 5P+IR
• Actual FoV with PAG7936 image sensor:
• D72.5° H63.8° V42.3°
• Camera Info (OV5640):
• Focal Length: Variable
• Aperture: F2.0
• Format: 1/4"
• IR Cut Filter: 650nm
• Horizontal Resolution: 1944 pixels (2.7384mm) 1.4um pixel pitch
• Vertical Resolution: 2592 pixels (3.6746mm) 1.4um pixel pitch
• Estimated FoV and EFL with OV5640 image sensor:
• D72° H60.3° V47.1°
• EFL: 3.1mm

Power Consumption

• Normal - Shutter Open (no FCC): 42mA @ 3.3V
• Calibrating - Shutter Closed (FCC): 242mA @ 3.3V

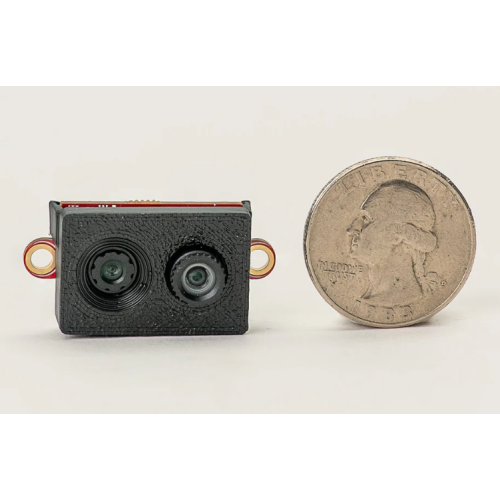

Dimensions

• Length: 35 mm
• Width: 16 mm
• Height: 14 mm

Temperature Range

• Storage Temperature: -30°C to 85°C
• Operating Temperature: -20°C to 60°C

Shipping Information

• Country of Origin: China
• HS Code: 8473.30.11.80
• Weight: 3 g
• UPC: 608275911153 (PAG7936) and 608275911177 (OV5640)
• SKU: Multispetral-Thermal-Camera-Module and Multispetral-Thermal-Camera-Module-OV5640
• ECCN: EAR99

Downloads

• 3D Model
• PAG7936 Multispectral Thermal Camera Module (.step)
• OV5640 Multispectral Thermal Camera Module (.step)
• Cover
• PAG7936 Multispectral Thermal Camera Module Cover (.stl)
• OV5640 Multispectral Thermal Camera Module Cover (.stl)
• Datasheets
• FLIR Lepton Data Sheet
• FLIR Lepton Application Note
• Camera Brief: PAG7936 (.pdf)
• Camera Datasheet: PAG7936 (.pdf)
• Camera Datasheet: OV5640 (.pdf)
• Software Application Note (.pdf)
• Level Shifter Datasheet: SN74AXC8T245 (.pdf)
• Level Shifter Datasheet: 74LVC1T45 (.pdf)
• Level Shifter Datasheet: NXS0104 (.pdf)
• Level Shifter Datasheet: NXB0104 (.pdf)
• Voltage Regulator Datasheet: TLV62568 (.pdf)
• Voltage Regulator Datasheet: MIC5365 (.pdf)
• Certificates
• RoHS Certification: PAG7936 + FLIR Lepton (.pdf)
• RoHS Report: PAG7936 + FLIR Lepton (.pdf)

Package Includes:

• 1 x  Multispectral Thermal Camera Module
