The lens comes with damping grease to help hold it in place. However, you will need to glue the lens if you need to handle vibration. We are working on an M8 lock ring to solve this problem.

Note that this lens is intended for the OpenMV AE3 or our dual-camera module sensor products that use the PAG7936.

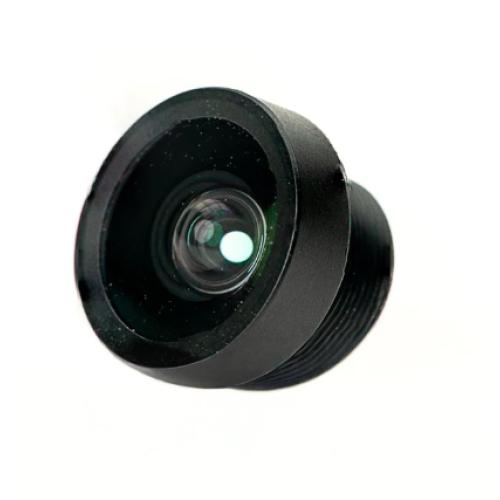

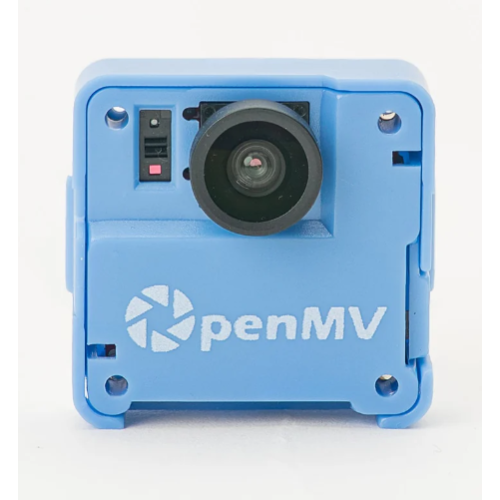

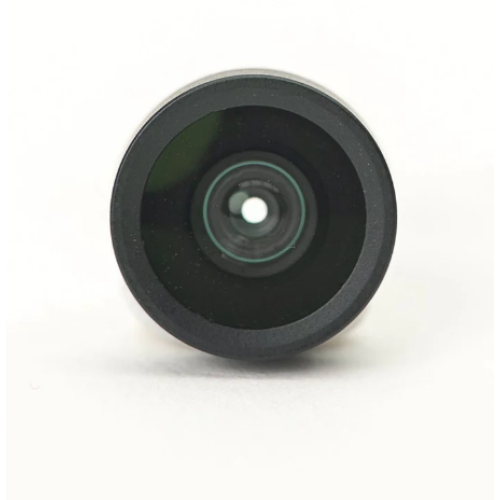

This lens gives your OpenMV Cam the ability to see a wider field-of-view (FOV). The standard lens that ships with your OpenMV AE3 has about a 70° FOV which is good, but, not great for security applications. This lens has about a 90° FOV, so your OpenMV AE3 can see much more without significant image distortion.

Specifications

Model: M8-2030-S
Mount: M8*P0.35
F/No.: F2.0
EFL: 2.3mm
BFL: 2.29mm
TTL: 10.47mm
Image circle: Φ5.3mm
Image Format: 1/4"
FOV: 1/4" D90° H72° V60°
TV Distortion: 1/4" -2%
RI: 1/4" >67%
CRA: 1/4" <18%
MOD: 0.2m
Resolution: 2MP
Size: Φ11*8.2mm
IR Coating Filter: 650nm
Focus: Manual
Iris: Fixed
Zoom: Fixed

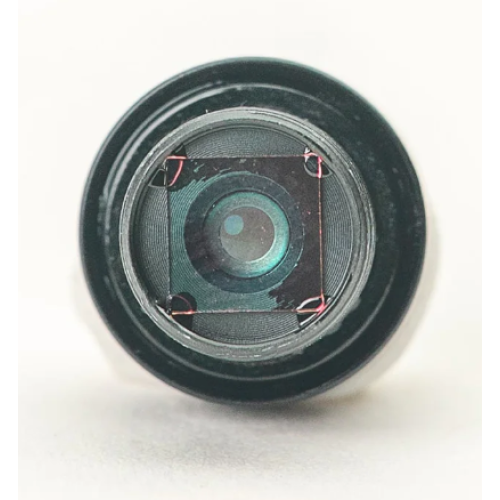

Construction: 4E+IR
* Tolerance：±5%
Actual FoV and zoom with PAG7936 image sensor:
D89.2° H79.6° V55.2°
0.74x optical zoom

Applications:

The M8 Ultra Wide Angle Lens is great for security applications where you want to see a wider field-of-view. For example, by using the M8 Ultra Wide Angle Lens, your OpenMV AE3 can easily detect things in an entire room without having to be mounted far away.

Dimensions
