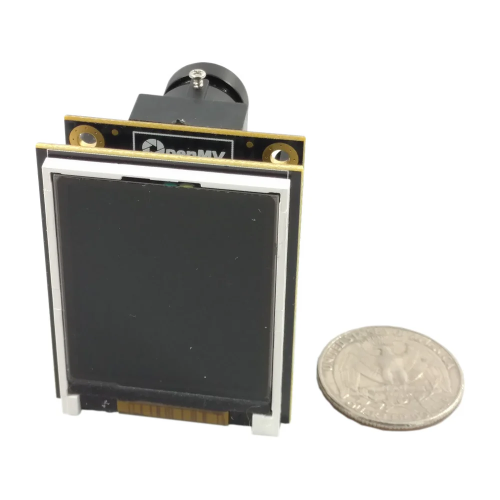

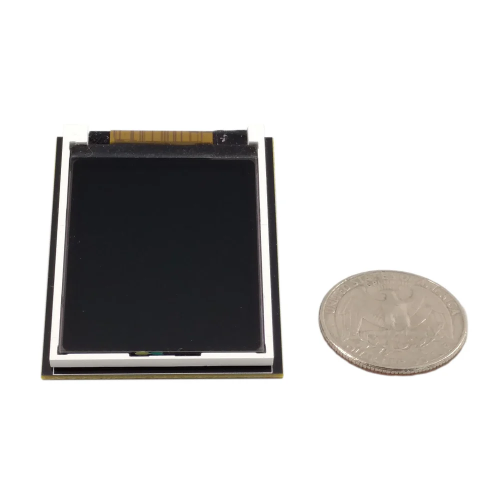

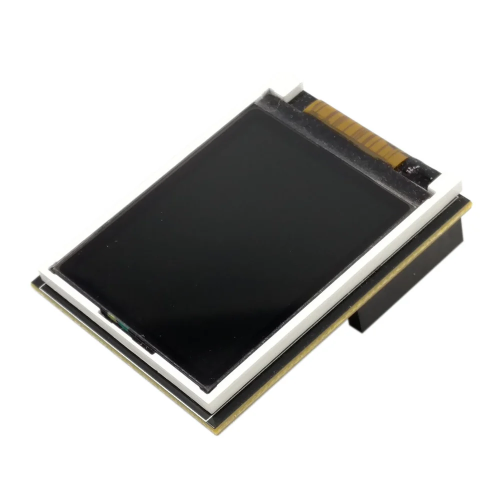

OpenMV CAM LCD Expansion Board is an LCD Expansion Board customized for OpenMV CAM. It allows your OpenMV CAM to display what it sees on-the-go without connecting to your computer. The OpenMV CAM LCD Expansion Board features a TFT LCD display with RGB color lights and a controllable backlight. It can clearly display the picture captured by OpenMV CAM.

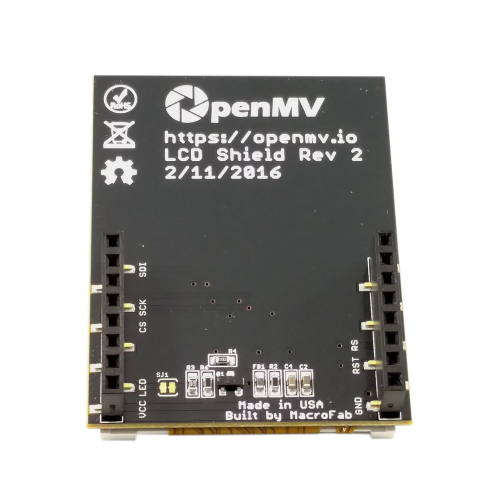

Pins function

• P0 SPI data in
• P1 NC
• P2 SPI clock.
• P3 SPI chip select (10K pull-up)
• P4 NC
• P5 NC
• P6 LED control.
• 3.3 3.3v input
• RST NC
• BOOT NC
• SYN NC
• P9 NC
• P8 RS
• P7 RESET
• VIN NC
• GND GND

Specifications:

• Power Consumption
• Idle Backlight Off: < 1mA  3.3V (> 100mA w/ Cam)
• Idle Backlight On: 30mA 3.3V (130mA w/ Cam)
• Active Backlight Off: 10mA 3.3V (150mA w/ Cam)
• Active Backlight On: 40mA 3.3V (180mA w/ Cam)


• Temperature Range

•  Storage: -30°C to 80°C
• Operating: -20°C to 70°C

• Screen Type: 1.8" TFT LCD

• Horizontal Resolution: 128 pixels (28.03mm)0.18mm pixel pitch
• Vertical Resolution: 160 pixels (35.04mm)0.18mm pixel pitch
• Display Colors: 64K 16-bit RGB565
• Length: 48mm

• Width: 38mm
• Height: 13mm

Documentations:

• User Guide

Package Includes:

• 1 x OpenMV Cam LCD Shield
