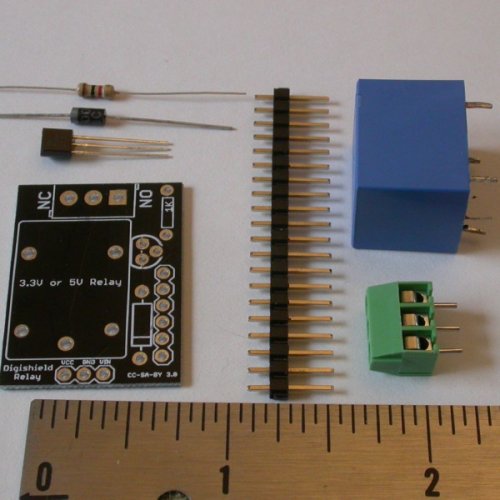

The 3.3V Relay Shield Kit allows you to build a shield that controls a relay with the Oak. Switch up to 24V DC or 120/240V AC wirelessly. The version for Oak uses a compatible 3 volt coil (max 3.9 V, 110mA coil current). The screw terminal has positions for both NC (normally closed) and NO (normally open).

Note:
  • This is an unassembled kit and requires basic soldering. This is designed for use with the Digistump Oak development board, which is not included.
  • Schematics, source files, software, and datasheets are provided rovided "as is", without warranty of any kind, express or implied, including but not limited to the warranties of merchantability, fitness for a particular purpose and noninfringement. in no event shall the authors or copyright holders be liable for any claim, damages or other liability, whether in an action of contract, tort or otherwise, arising from, out of or in connection with the product or the use or other dealings in these products.

Hardware License:
  • CC-BY-SA 3.0
Documents:
Package Includes:
  • 1 x 3.3V Relay Shield



Write a review

Please login or register to review

3.3V Relay Shield

  • Brand: Digistump
  • Product Code:DGST-Oak-Relay-Shield
  • Reward Points:10
  • Availability:In Stock
  • रo 989.00

  • Ex Tax:रo 989.00
  • Price in reward points:989

  • 15 or more रo 981.00
  • 30 or more रo 973.00
  • 70 or more रo 965.00
  • 145 or more रo 957.00
