This premium RTL-SDR was designed, developed and fabricated in order to implement a wide array of feature requests. Compared to R820T-based devices, this E4000-based SDR excels at sensitivity at <500MHz and >1500MHz, and is capable of far higher frequencies, up to approximately 2350MHz. There is a small gap in frequency capability near 1100MHz. As such, we do NOT recommend this device for ADS-B usage.
Specifications:
-
SDR:
- RTL2832U Demodulator/USB interface IC
- E4000 tuner IC
- 0.5PPM, ultra-low phase noise TCXO
- 2 RF-suitable voltage regulators
- Shielded primary inductor
- Integrated custom heatsink
- 2 silicone pads
- Female SMA antenna input
- High-quality silver brushed aluminum enclosure
- Frequency capability approximately 65MHz-2300MHz, with small frequency gap near 1100MHz
-
TCXO:
- Frequency stability: 0.5PPM (max)
- Phase noise @1kHz offset: -138dBc/Hz (or better)
- Phase noise @10kHz: -150dBc/Hz (or better)
- Phase noise @100kHz: -152dBc/Hz (or better)
Documents:

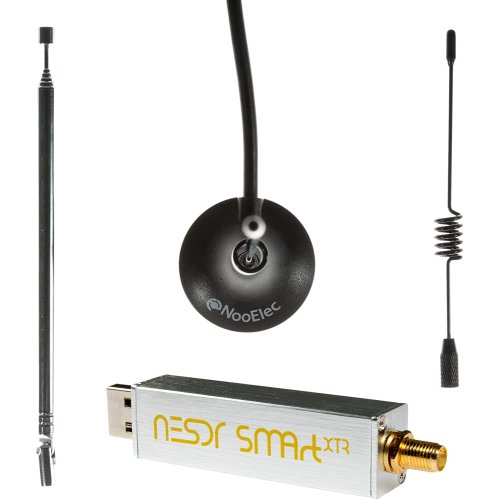

Package Includes:
- 1 x NESDR SMArt XTR SDR in silver brushed aluminum enclosure
- 1 x Antenna base w/ 2m RG58 cable
- 1 x Telescopic antenna mast (variable frequency capability)
- 1 x 433MHz (ISM) antenna mast (10.5", fixed frequency)
- 1 x UHF antenna mast (4.5", fixed frequency)
Nooelec NESDR SMArt XTR Bundle - Premium RTL-SDR
- Brand: Nooelec
- Product Code:NE-SMArt-XTR-Bundle
- Reward Points:68
- Availability:In Stock
-
रo 8,053.50
- Ex Tax:रo 6,825.00
- Price in reward points:6825
-
- 2 or more रo 7,988.60
- 5 or more रo 7,923.70
- 10 or more रo 7,858.80
- 20 or more रo 7,793.90
