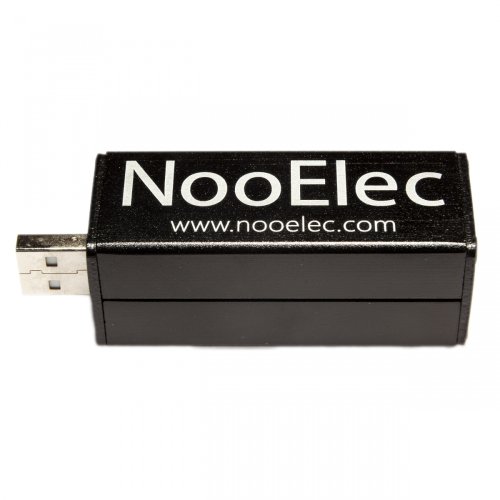

This Nooelec NESDR Mini+ Al is an ultra-high-accuracy RTL-SDR with an R820T tuner IC, pre-installed into a high quality black aluminum enclosure to reduce stray EMI
This custom Nooelec SDR is a modified DVB-T USB dongle tuned for SDR usage, including upgraded crystal, capacitors and inductors compared to generic devices. Full compatibility with a large array of software packages, such as MATLAB, HDSDR, SDR Touch, SDR#, Planeplotter--too many to list. The perfect device for learning software defined radio, on the cheap. Amateur radio, ADS-B, police & fire scanning, trunking, satellite images. The connector type on the antenna and USB board is MCX--male MCX on the antenna, female MCX on the SDR.
| USB Interface IC | RTL2832U |
| Tuner IC | R820T |
| Frequency Range (approximate) | 25MHz - 1750MHz |
| TCXO clock | Yes |
| Antenna Connector Type | MCX |
| Antenna Included? | Yes |
| Remote Included? | Yes |
| Additional Accessories | 0.5PPM TCXO installed as standard, anodized aluminum enclosure |
Documents:
Package Includes:
- 1 x Nooelec NESDR Mini+ Al
Nooelec NESDR Mini+ Al
- Brand: Nooelec
- Product Code:NE-NESDR-AI-Mini
- Reward Points:44
- Availability:In Stock
-
रo 5,215.60
- Ex Tax:रo 4,420.00
- Price in reward points:4420
-
- 3 or more रo 5,174.30
- 7 or more रo 5,133.00
- 17 or more रo 5,091.70
- 35 or more रo 5,044.50
