| SoC | Model: Rockchip RK3576 |
| CPU | Cores: 4x Cortex-A72 + 4x Cortex-A53 Frequency: Cortex-A72 up to 2.2 GHz, Cortex-A53 up to 2.0 GHz |
| GPU | ARM Mali-G52 MC3, supports OpenGL ES 1.1, 2.0, 3.2, Vulkan 1.2, and OpenCL 2.0 |
| VPU | 8K@30fps H.265/VP9 video decoder, 4K@60fps video encoder |
| NPU | 6 TOPS*@INT8 supports INT4, INT8, INT16, FP16, BF16, TF32 mixed operation |
| RAM | LPDDR4X(2GB/4GB) / LPDDR5(16GB) |
| Storage | Flash: 32GB eMMC MicroSD Slot: support UHS-I |

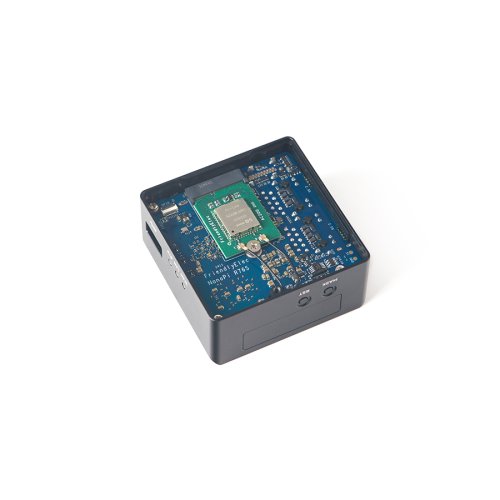

| Connectivity | 2 x PCIe 2.5G Ethernet, RTL8125BG chip Supports M.2 SDIO Wi-Fi/BT module |
| Video Output | Standard HDMI Type-A output port • Supports HDMI 1.4 and HDMI 2.0 operations • Supports up to 10 bits Deep Color modes • Supports up to 1080p@120Hz and 4096x2304@60Hz • Supports 3D video formats |
| USB | USB 3.0: 3.2 Gen 1 Type-A ports USB-C: 5V Power input Only |
| Pin header | 8-Pin GPIO connector Debug UART: 3-pin 2.54mm header, 3V level, 1500000bps |
| LED | SYS LED (Red) LED1 (Green) LED2 (Green) |
| Button | MASK Button for eMMC update User Button Power Button |
| Others | RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS Working Temperature: 0℃ to 70℃ |
| Power Supply | USB-C, 5V Power input |
| OS Support | Alpine Linux Android 14 Tablet Android 14 TV Buildroot Debian 12 Core Debian 11 Desktop FriendlyWrt 21.02/23.05/24.10 OpenMediaVault Proxmox VE Ubuntu 20.04 Desktop Ubuntu 24.04 Desktop Ubuntu 24.04 Core |
| Kernel version | Linux-6.1-LTS U-boot-2017.09 |
| *The firmware is continuously updated, refer to the actual version provided by the WiKi. |

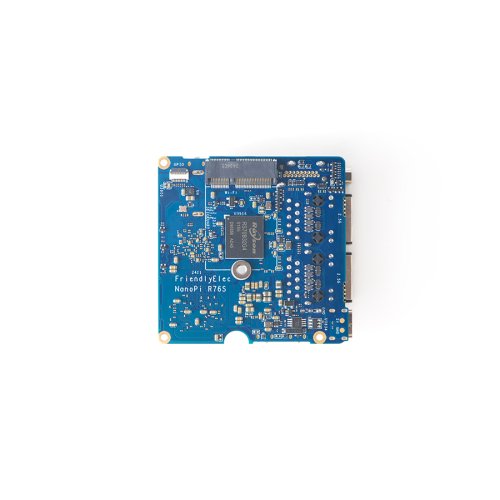

| PCB | 8-Layer |
| Weight | 37.5g(without Case) / 145.5g(with Case) |

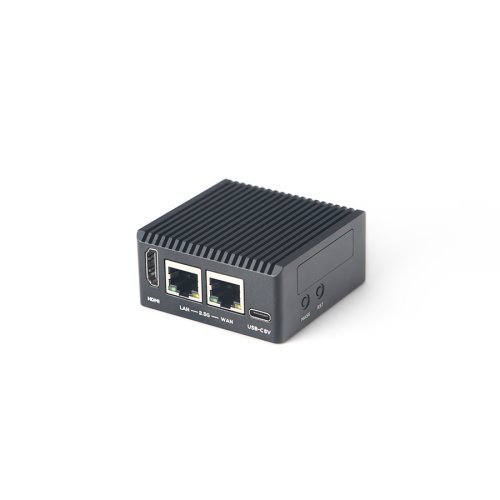

| Dimension | 58x58x1.6mm (without Case) / 62.5x62.5x29mm (with Case) |
Documentations:
Package Includes:
- 1 x NanoPi R76S

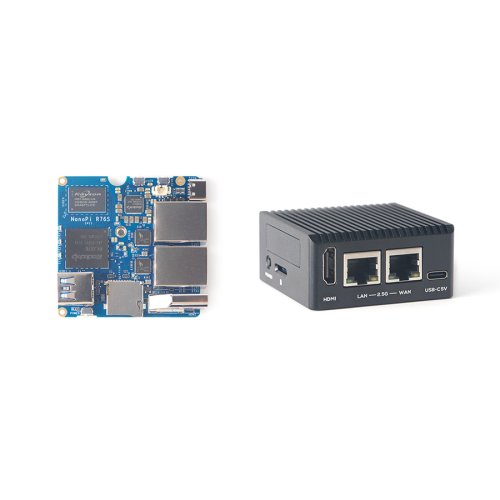

NanoPi R76S
- Brand: FRIENDLYARM
- Product Code: FARM-NanoPi-R76S
- Reward Points: 103
- Availability: In Stock
- रo 10,346.00
-
रo 8,690.00
- Price in reward points: 10346
-
- 2 or more रo 10,263.00
- 3 or more रo 10,180.00
- 7 or more रo 10,097.00
- 15 or more रo 10,014.00
Available Options
