Introduction:

Layout Interface:

Hardware Specifications:

• CPU : Model: Rockchip RK3528A
• Number of Cores: Quad-core
• Frequency: 4 x ARM Cortex-A53 Up to 1.8GHz
• GPU : ARM Mali-450 GPU
• VPU : 4K H265/H264 60fps decoding
• Memory : RAM: 1GB LPDDR4
• Storage : Flash: Supports eMMC module
• 1 x microSD slot: microSD for external storage up to 128GB
• Connectivity : Dual Gigabit Ethernets: RTL8211F and RTL8111H
• On-Board Wi-Fi 6 and Bluetooth 5.3 module
• USB : 1 x USB-C 2.0 for eMMC upgrade and 5V power input
• 1 x USB-C to UART debug console
• LED : 1 x SYS LED(Red)
• 2 x user LED(Green)
• Button : 1 x User/C button
• 1 x MASK button for eMMC upgrade
• Others : RTC battery: 2-Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
• Working temperature: 0℃ to 70℃
• Power :DC 5V/2A (non-PD)

OS/Software:

• OS Support : Alpine Linux 3.23
• Buildroot - Weston(Wayland)
• Debian 13 Core
• FriendlyWrt 25.12
• OpenMediaVault 8.0.6
• Proxmox VE 8.2.7
• Ubuntu 24.04 Core
• Kernel version : Linux-6.1-LTS
• U-boot-2017.09

Dimensions:

• PCB : 8 Layer
• Weight : 45x45x1.2mm(Without case) / 49.5x49.5x24mm(With case)
• Dimension : 14g(Without case) / 77.5g(With case)

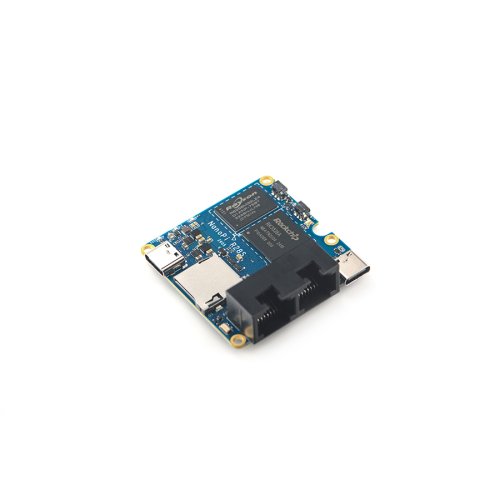

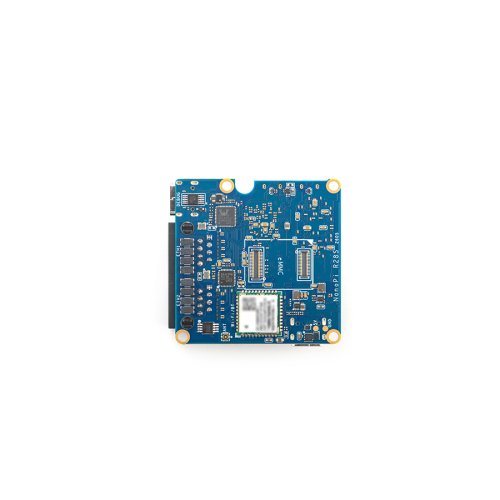

Images:

Documentations:

• Wiki

Package Includes:

Standard

• 1 x NanoPi R28S
• 1 x PCB Antenna (Bonus)

                        OR

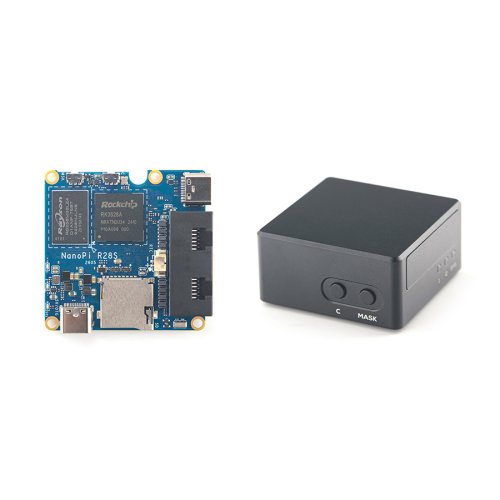

Combo

• 1 x NanoPi R28S
• 1 x CNC Metal Case (Assembled)
