Hardware Specification :
| CPU |
Model: Allwinner H3 Number of Cores: Quad-core Frequency: 4*Cortex-A7 Up to 1.2GHz |
| Memory | 512MB DDR3 RAM |
| Storage | MicroSD Slot: MicroSD*1 for external storage up to 128GB |
| Connectivity |
Ethernet: 10/100M Ethernet WiFi: 802.11b/g/n Bluetooth: Bluetooth V4.0 of 1, 2 and 3 Mbps Antenna*1: IPX Connector |
| Audio | Input/Output: exposed in 2.54mm pitch pin header |
| Video Input | Camera (OV5640 etc) |
| USB |
MicroUSB: OTG and power input USB Host: 2.54mm pin x2, exposed in 2.54mm pitch pin header |
| Pin-header |
GPIO1: 2.54mm spacing 16pin It includes UART, SPI, I2C, Audio etc GPIO2: 2.54mm spacing 16pin It includes USB,10/100M Ethernet, GPIO etc Debug Serial Interface: exposed in 2.54mm pitch pin header |
| LED |
Power LED(Red)*1 STAT LED(Green)*1 |
| Others | Working Temperature: -20℃ to 70℃ |
| Power |
DC 5V/2A |
OS Software :
| OS Support |
FriendlyCore 16.04 OpenWrt |
| Kernel version |
Linux-4.14-LTS U-boot-2017.11 |
Dimension :
| PCB | 6 Layer |
| Dimension | 55*25.4mm |
| Weight |
7.36g(WITHOUT Pin-header) |
Package Includes :
- 1 x NanoPi Duo2
- 2 x 16pin single-row pin header
- 1 x Antenna
Additional Accessories :
| Processor Specifications | |
| Processor | Cortex-A7 Quad Core |
| Operating System (OS) | FriendlyCore 16.04 OpenWrt |
| Number of Cores | Quad-core |
| Speed | 4*Cortex-A7 Up to 1.2GHz |
| Board Specifications | |
| Storage | MicroSD Slot: MicroSD*1 for external storage up to 128GB |
| GPIO | GPIO1: 2.54mm spacing 16pin It includes UART, SPI, I2C, Audio etc, GPIO2: 2.54mm spacing 16pin It includes USB,10/100M Ethernet, GPIO etc, Debug Serial Interface: exposed in 2.54mm pitch pin header |
| Memory Specifications | |
| RAM | 512MB DDR3 RAM |
| Connectivity | |
| Wi-Fi | WiFi: 802.11b/g/n |
| USB | MicroUSB: OTG and power input USB Host: 2.54mm pin x2, exposed in 2.54mm pitch pin header |
| Bluetooth | Bluetooth: Bluetooth V4.0 of 1, 2 and 3 Mbps |
| Ethernet | Ethernet: 10/100M Ethernet |
| Electrical Specifications | |
| Output Power | DC 5V/2A |
| Maximum Operating Temperature | -20℃ to 70℃ |

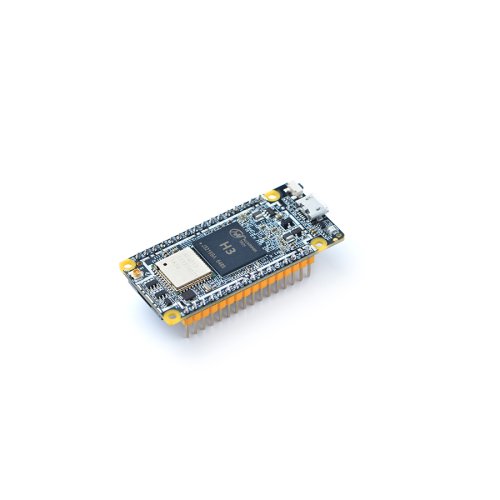

NanoPi Duo2
- Brand: FRIENDLYARM
- Product Code:FARM-Nano-Pi-Duo2
- Reward Points:31
- Availability:In Stock
- रo 3,694.58
-
रo 3,103.40
- Ex Tax:रo 2,630.00
- Price in reward points:3131
-
- 5 or more रo 3,665.08
- 10 or more रo 3,635.58
- 23 or more रo 3,606.08
- 45 or more रo 3,576.58
