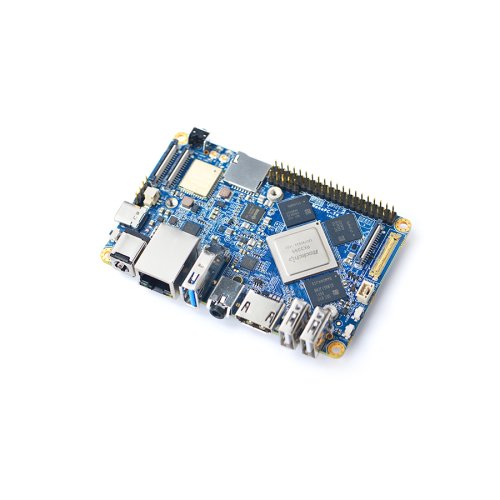

The NanoPC-T4 is by far the smallest RK3399 based high-performance ARM board with popular ports and interfaces. Its software is fully open source. It is as small as 100 x 64 mm. It has 4GB LPDDR3 RAM, 16GB eMMC flash, onboard 2.4G & 5G dual-band WiFi module and a full standard M.2 PCIe interface which supports an NVME SSD high-speed hard drive. The NanoPC-T4 supports GPU and VPU acceleration and works with Android 8.1 and Lubuntu Desktop.

The NanoPC-T4 has a MIPI-CSI dual camera interface, a MIPI-DSI and an eDP display interfaces, and an HDMI 2.0 interface. It has Type-C/DP, USB 3.0, USB2.0, MicroSD, Gbps Ethernet port, 3.5mm audio jack, infrared receiver, AD input, serial debug interface and a 40Pin RPi compatible connector.

The RK3399 SoC has an internal Mali-T860 GPU which has powerful capabilities of processing 3D and HD H.265/H2.64 video streams. It supports dual camera inputs, dual ISP interface capable of doing image processing up to 800MPix/s. The NanoPC-T4 is a perfect platform for Al and deep learning applications. It can be widely used in advertisement machines, game machines, video conference applications, surveillance systems, clusters, VR/AR applications, machine vision applications and etc.

Specification:
SoC	CPU: big.LITTLE，Dual-Core Cortex-A72(up to 2.0GHz) + Quad-Core Cortex-A53(up to 1.5GHz)
	GPU: Mali-T864 GPU，supports OpenGL ES1.1/2.0/3.0/3.1, OpenCL, DX11, and AFBC
	VPU: 4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc
GPU:	Mali-T864 GPU，supports OpenGL® ES1.1/2.0/3.0/3.1, OpenCL™, DX11, and AFBC
NPU	4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc
DDR3 RAM:	Dual-Channel 4GB LPDDR3
Storage:	16GB eMMC 5.1 Flash
Network:	Native Gigabit Ethernet
PMU Power Management:	RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, sofeware power-down, RTC wake-up, system sleep mode
WiFi:	802.11a/b/g/n/ac, Bluetooth 4.1, Wi-Fi and Bluetooth combo module, dual antenna interface
Antenna Interface:	dual antenna interface
Audio input/output Port	3.5 mm audio jack / via HDMI,DVP Camera/MIPI-CSI (two camera interfaces),HDMI Type-A / LVDS / Parallel RGB-LCD / MIPI-DSI (four video output interfaces)
Bluetooth:	Bluetooth 4.1,Wi-Fi and Bluetooth combo module, dual antenna interface
Buttons	Power Button x1
	Reset Button x1
	MASKROM(BOOT) Button x1
	Recovery x1
Microphone:	onboard Microphone
LCD Interface:	one eDP 1.3（4 lane，10.8Gbps）, one 4-Lane MIPI-DSI
HDMI:	HDMI 2.0a, supports 4K@60Hz，HDCP 1.4/2.2
GPIO:	1 X 3V/1.8V I2C, up to 2 x 3V UART, 1 X 3V SPI, 1 x SPDIF_TX, up to 8 x 3V GPIOs
GPIO:	1 x 1.8V I2S, 3 x 1.8V GPIOs
Serial Debug Port:	one Debug UART, 4 Pin 2.54mm header, 3V level, 1500000bps
LED:	1 x power LED and 1 x GPIO Controlled LED
RTC:	2 Pin 1.27/1.25mm RTC battery input connector
PCB Dimension:	10 Layer, 100 mm x 64 mm
Power:	DC 12V/2A
Working temperature:	-20℃ to 70℃
Software Features
Kernel version	Linux-4.4-LTS
Kernel version	U-boot-2014.10
OS Support	Android 8.1
	Android 10
	Lubuntu 16.04 (32-bit)
	FriendlyCore 18.04 (64-bit)
	FriendlyDesktop 18.04 (64-bit)
	FriendlyWrt 21.02.1 (64-bit)
