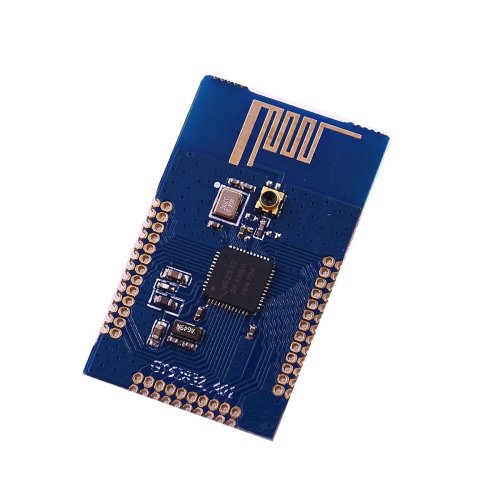

nRF52832 Bluetooth 4.1 BLE Module 512K Flash 64K RAM
1.Adopt M4 kernel,512K FLASH,64K RAM,NRF52832 chip with NFC function
2.Adopt 1.27mm pin and SMD bonding pad,easy to solder on bread board
3.Size:3.63*2.23cm

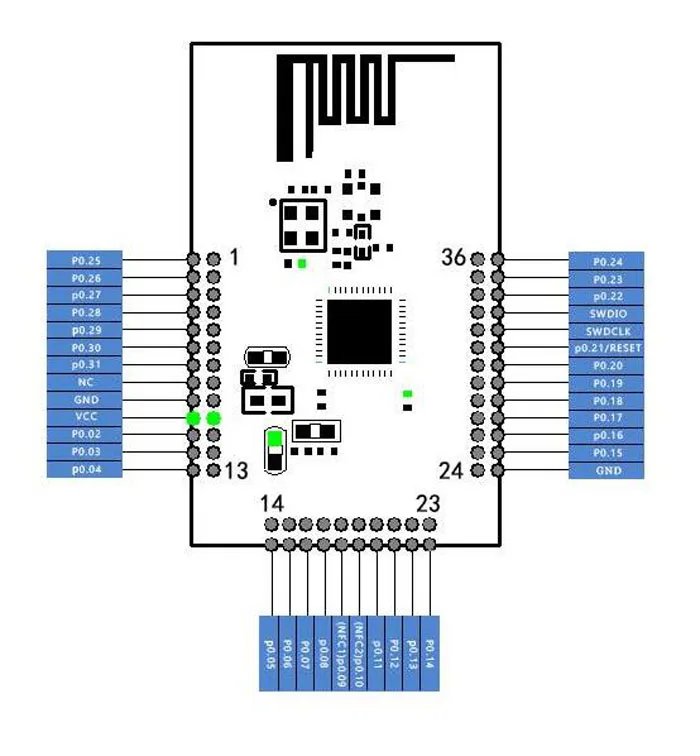

4.Lead out all GPIO ports on nRF52832 chip
5.Reserve external antenna SMA interface
Chip Features:
1.32/64MHz external clock
2.On-chip integrated 512KB FLASH,64 KB RAM
3.7.7mA TX at +4dBm;5.5mA TX at 0dBm;5.5mA RX at 1Mbs
4.In the air compatible with NRF24L seres,NRF24AP series,NRF51 series SOC
5.More than 20 PPI channels
6.Transmission Power:-20dBm-4dBm
7.Standby Current:400nA
8.Receiving Sensitivity:-96dBm (BLE)
9.Integrated NFC,support near field detection and awake;support OOB matching
10.Integrated BALUN
11.Integrated PDM,IIS interface
12.3x4 channel PWM output
13.12-bit 200KSPS ADC
nRF52832 Bluetooth 4.1 BLE Module 512K Flash 64K RAM
- Product Code:PRC-Bluetooth-4.1-BLE-nRF52832
- Reward Points:12
- Availability:Out Of Stock
-
रo 1,180.00
- Ex Tax:रo 1,000.00
- Price in reward points:1195
