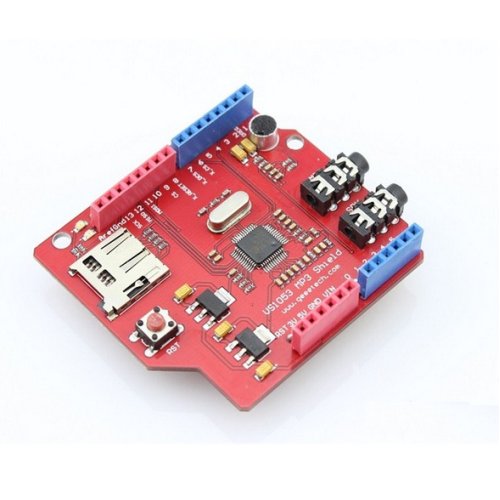

This MP3 shield board is designed based on VS1053B from VLSI. using this shiled you can plug in your arduino UNO/MEGA, it becomes more easy to play music compared with the tiny mp3 breakout board. VS1053 is a versatile MP3 codec processor that is capable of decoding a variety of music formats,including Ogg Vorbis/MP3/AAC/WMA/MIDI audio.
Features and Specification:
- Variety of music formats, support for OGG encoding real-time recording
- SPI interface, the control signal lines are led out
- A headphone and stereo output
- A microphone for recording
- A line_in input interface
- Power indicator
- 3.3V and 2.8V of LDO chip AMS-1117 on board, provides up to 800mA current
- A single power supply: +5 VDC
- 12.288 Mhz crystal
- TF card slot
- Decodes formats
- Ogg Vorbis
- MP3 = MPEG 1 & 2 audio layer III (CBR+VBR+ABR)
- MP1 & MP2 = MPEG 1 & 2 audio layers I & II optional
- MPEG4 / 2 AAC-LC(+PNS), HE-AAC v2 (Level 3) (SBR + PS)
- WMA4.0/4.1/7/8/9 all profiles (5-384 kbps)
- FLAC lossless audio with software plugin (upto 24 bits, 48 kHz)
- WAV (PCM + IMA ADPCM)
- General MIDI 1 / SP-MIDI format 0
- Encodes formats from mic/line
- Ogg Vorbis with software plugin
- IMA ADPCM
- 16-bit PCM
Document
MP3 Shield for Arduino
- Brand: Arduino
- Product Code: PRC-Shield-MP3-Arduino
- Reward Points: 23
- Availability: Out Of Stock
- रo 2,380.00
-
रo 2,300.00
- Price in reward points: 2380
