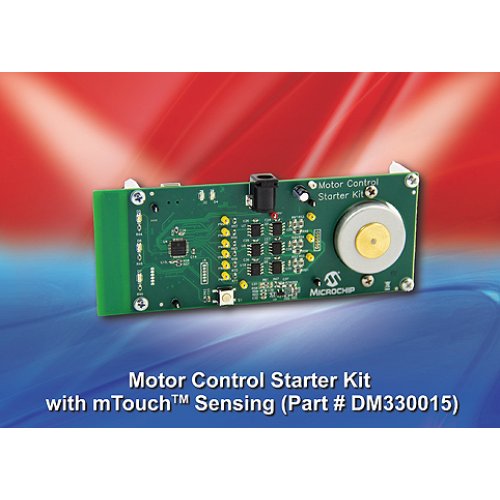

The motor control Starter Kit with mTouch Sensing is a complete hardware and software tool suite for evaluating Microchips ultra-low cost Motor Control Family dsPIC DSCs. It contains a single board with BLDC motor, capacitive-touch sliders and a built-in debugger.
Features:
- dsPIC33FJ16MC102 - Very Low cost 16-bit Motor Control DSC
- On-board In-Circuit Programming / Debug via USB
- On Board 3-phase BLDC Motor
- 15v, 2.6A On Board Drive Circuit with pads for user supplied motor
- Capacitive Touch Slider for Speed Control with LED indicators
- Compact Design – 2” x 5” Board
- Powered via 9V power supply
- Sensorless BEMF Majority Detect Control
Documents:
- MCSKUserGuide
- InfoSheet
- MCSKUserGuide75015A
- MotorControlStarterKitUserGuide
- Motorcontrolstarterkitinformationsheet
- Motorcontrolstarterkituserguide
Warranty:
- Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.
Package Includes:
- 1 x Motor Control Starter Kit Board
- 1 x BLDC motor
- 1 x 9V power supply
- 1 x USB cable.
Motor Control Starter Kit With Mtouch Sensing
- Brand: Microchip Technology
- Product Code:LP-Motor-Control-Kit
- Reward Points:86
- Availability:In Stock
-
रo 10,118.50
- Ex Tax:रo 8,575.00
- Price in reward points:8575
