Red Pitaya Calibrated Diagnostic Kit :
Red Pitaya is an open-source-software measurement and control tool that consists of easy-to-use visual programming software and free of charge, ready-to-use open-source, web-based test and measurement instruments running on a powerful, credit card-sized board. With a single click, the board can transform into a web-based oscilloscope, spectrum analyzer, signal generator, LCR meter, Bode analyzer, or one of many other applications. Red Pitaya can be controlled by using Matlab, LabView, Python & Scilab.
Calibration is performed in noise controlled environment. Inputs and outputs gains are calibrated with 0.02% and 0.003% DC reference voltage standards. Input gains calibration is performed in medium size timebase range. Red Pitaya is non-shielded device and its inputs/outputs ground is not connected to the earth grounding as it is in case of classical Oscilloscopes. To achieve calibration results given below, Red Pitaya must be grounded and shielded.
| INPUTS | |||
|---|---|---|---|
| LV settings (+/- 1 V range) | HV settings (+/- 20 V range) | ||
| DC GAIN ACCURACY @ 122 kS/s | DC OFFSET @ 122 kS/s | DC GAIN ACCURACY @ 122 kS/s | DC OFFSET @ 122 kS/s |
| 0.2 % | +/- 0.5 mV | 0.4 % | +/- 2 mV |
| OUTPUTS | |||
| DC OFFSET | DC GAIN ACCURACY | RIPPLE(@ 0.5V DC) | |
| +/- 4 mV | 0.4 % |
0.4 mVpp |
|
Calibration of Red Pitaya Oscilloscope and Signal generator Application include next parameters:
- Calibration of Inputs DC offsetCalibration of Inputs gains
- Calibration of Outputs DC offset
- Calibration of Outputs gains
HW Specifications:(Red Pitaya Board)
- Xilinx Zynq 7010 SoC
- Dual core ARM Cortex A9+ FPGA
- DDR3 RAM 512MB (4Gb)
- microSD up to 32Gb
- 1000Base-T Ethernet connection
- USB 2.0 - Console connection: micro USB
- Power consumption: 5V, 2A max

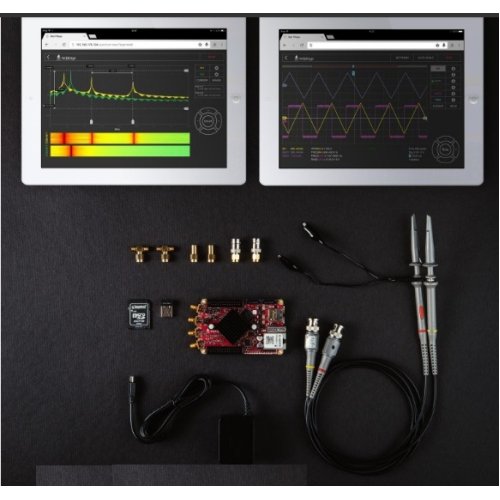

Calibrated Diagnostic kit includes:
- 1x Calibrated Red Pitaya V1.1 board
- 1x Oscilloscope PRO Application
- 1x Spectrum Analyzer PRO Application
- 1x Micro USB Power Supply Adaptor
- 1x 4GB Micro SD Card
- 2x 50 ohm termination
- 1x Red Pitaya compatible WI-FI USB dongle
- 2x 60MHz Oscilloscope Probes
- 2x Adaptors SMA(M) to BNC(F)
Red Pitaya Calibrated Diagnostic Kit
- Product Code: :Red-Pitaya-Calibrated-Diagnostic-Kit
- Reward Points: :735
- Availability: :Discontinued
-
रo 73,350.00
- Price in reward points: 73350
