Mini Soldering Iron

Mini Soldering Iron
Mini Soldering Iron
Scroll and tap to view images
Mini Soldering Iron Mini Soldering Iron Mini Soldering Iron Mini Soldering Iron Mini Soldering Iron Mini Soldering Iron Mini Soldering Iron Mini Soldering Iron Mini Soldering Iron Mini Soldering Iron
Product Code: Seeed-Mini-Soldering-Iron
Reward Points: 82
Availability: In Stock
Price: रo 8,215.00
Price in reward points: 8215
Qty:     - OR -   Add to Wish List
Add to Compare

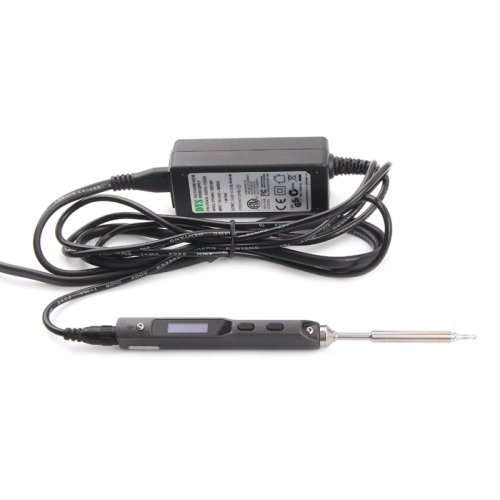

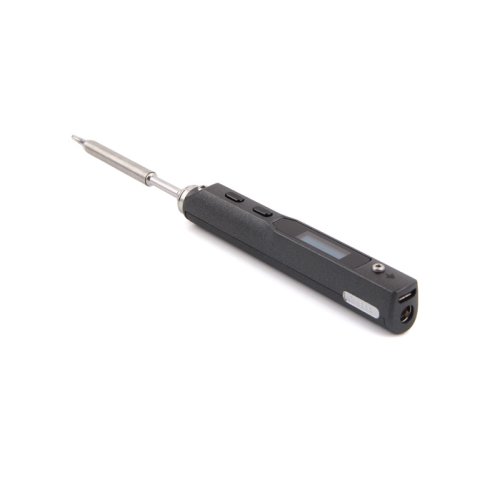

Mini Soldering Iron, is a small, lightweight, quick heating up soldering pencil for great soldering application. Temperature can be controlled accurate, stable and easy adjusted from 100 to 400 Celsius with STM32. Benefit from dual temperature and accelerated sensors, the solder can be in sleep mode and over-heating warning automatically. Soldering iron tips can be replaceable for 4 types and can be programed software.

Features:
  • Portable and lightweight. More convenience for soldering.
  • Easy temperature control
  • Sleep mode, which good for safety use and extend lift of soldering tips.
  • Alert mode, screen appears “warning” when temperature is higher than 400℃.
  • Solder iron tips can be changeable.
  • Software can be rewrote and programmed.
  • The power adapter accepts 100V-240V voltage input.



Specifications

Screen

OLED

USB Port

Micro USB

Power Port

DC5525

Operating Part Dimensions

Length: 96mm, Diameter: 16.5mm

Heating Part Dimensions

Length: 33mm, Diameter: 5.5mm

Weight

33g (power adaptor not included)

Operation Specifications

Power

65W

Adjustable Temperature Range

100℃ - 400℃

Temperature Stability

±2%

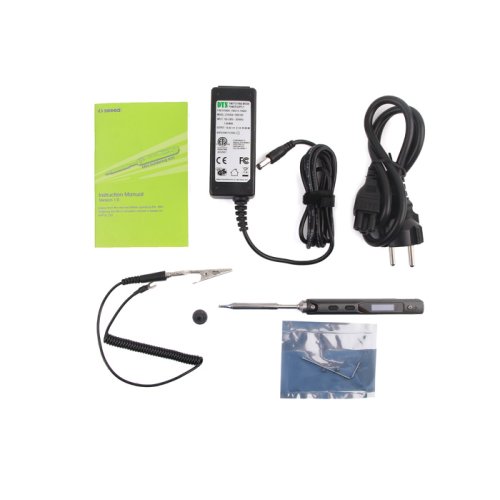

Part List:
  • Mini Soldering Iron Operating Part x 1

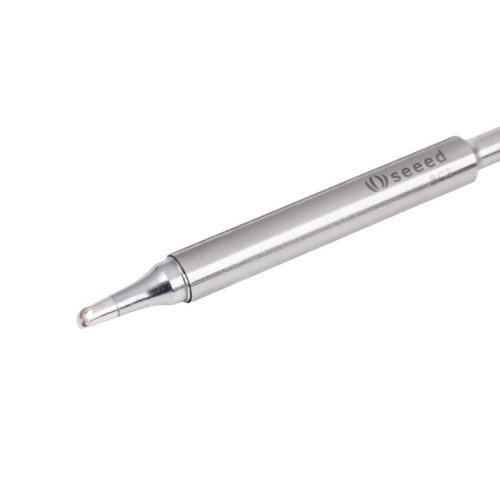

  • Solder iron tip type-BC2 x 1
  • DC5525 power adaptor (Europe Standard) x 1
  • Earth clamps x 1
