High performance PIC18 core with 8x8 Hardware Multiply, Flash Program Memory with self read/write capability, 256 Bytes of integrated EEPROM, Internal 48MHz Oscillator with USB Accuracy -Via Active Clock Tuning from USB Host.
Specifications:
| EU RoHS | Compliant |
| Family Name | PIC18 |
| Instruction Set Architecture | RISC |
| Device Core | PIC |
| Core Architecture | PIC |
| Maximum CPU Frequency (MHz) | 48 |
| Maximum Clock Rate (MHz) | 48 |
| Data Bus Width (bit) | 8 |
| Program Memory Type | Flash |
| Program Memory Size | 32KB |
| RAM Size | 2KB |
| Programmability | Yes |
| Process Technology | CMOS |
| Interface Type | I2C/SPI/USART/USB |
| Number of I/Os | 25 |
| PWM | 2 |
| No. of Timers | 4 |
| Number of ADCs | Single |
| ADC Channels | 14 |
| ADC Resolution (bit) | 10 |
| USART | 1 |
| USB | 1 |
| SPI | 1 |
| I2C | 1 |
| Watchdog | 1 |
| Analog Comparators | 2 |
| Minimum Operating Supply Voltage (V) | 2.3 |
| Typical Operating Supply Voltage (V) | 3.3|5|2.5 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Maximum Power Dissipation (mW) | 1000 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Supplier Temperature Grade | Industrial |
| Pin Count | 28 |
| Supplier Package | SPDIP |
| Mounting | Through Hole |
| PCB changed | 28 |
Documents:
Package Includes:
- 1 x PIC18F25K50-I/SP Microcontroller - Original
| Controller Specifications | |
| Family Name | PIC18 |
| Instruction Set Architecture | RISC |
| Clock Speed | 48MHz |
| Device Core | PIC |
| Device Architecture | PIC |
| Bus Width | 8bit |
| Program Memory Type | Flash |
| Interface Type | I2C/SPI/USART/USB |
| ADC | |
| Number of ADC | Single |
| Number of ADC Channel | 14 |
| ADC Resolution | 10bit |
| Electrical Specifications | |
| Minimum Operating Voltage | 2.3V |
| Maximum Operating Voltage | 5.5V |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Maximum Power Dissipation | 1000mW |
| Packaging | |
| Package | SPDIP |
| Mounting | Through Hole |
| Pin Count | 28 |

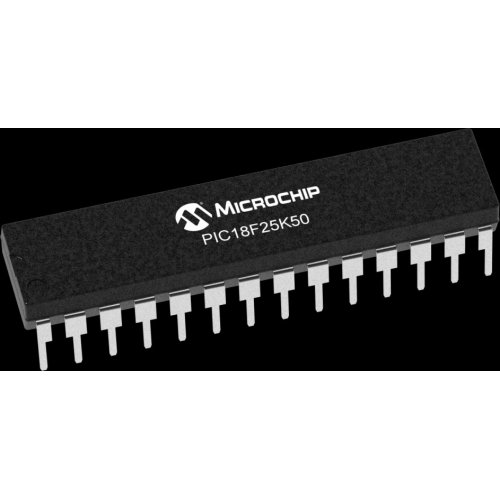

PIC18F25K50-I/SP Microcontroller - Original
- Brand: Microchip Technology
- Product Code:ccccc
- Reward Points:4
- Availability:Out Of Stock
-
रo 420.08
- Ex Tax:रo 356.00
- Price in reward points:356
-
- 35 or more रo 416.54
- 70 or more रo 413.00
- 170 or more रo 409.46
- 343 or more रo 405.92
