The PIC16(L)F184xx 8-bit product family features high resolution Analog, Core Independent Peripherals (CIPs) and communication along with eXtreme Low-Power (XLP) technology for a wide range of general purpose and low-power applications. The family offers a 12-bit ADC with computation (ADC2), multiple communications interfaces, a temperature sensor; along with memory features like Memory Access Partition (MAP) and Device Information Area (DIA). The 12-bit ADC2 automates Capacitive Voltage Divider (CVD) techniques for advanced touch sensing, averaging, filtering, oversampling and automatic threshold comparison. The products also have a highly effective power management features such as CPU IDLE/DOZE modes, peripheral module disable (PMD) and peripheral pin select (PPS).
| EU RoHS | Compliant |
| Family Name | PIC16 |
| Instruction Set Architecture | RISC |
| Device Core | PIC |
| Core Architecture | PIC |
| Maximum CPU Frequency (MHz) | 32 |
| Maximum Clock Rate (MHz) | 32 |
| Data Bus Width (bit) | 8 |
| Program Memory Type | Flash |
| Program Memory Size | 14KB |
| RAM Size | 1KB |
| Programmability | Yes |
| Interface Type | I2C/SPI/USART |
| Number of I/Os | 26 |
| No. of Timers | 8 |
| PWM | 2 |
| Number of ADCs | Single |
| ADC Channels | 24 |
| ADC Resolution (bit) | 12 |
| Number of DACs | Single |
| DAC Channels | 1 |
| DAC Resolution (bit) | 5 |
| USART | 2 |
| SPI | 2 |
| I2C | 2 |
| CAN | 0 |
| Ethernet | 0 |
| Watchdog | 1 |
| Analog Comparators | 2 |
| Minimum Operating Supply Voltage (V) | 1.8 |
| Typical Operating Supply Voltage (V) | 5|3.3 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Maximum Power Dissipation (mW) | 800 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 125 |
| Supplier Temperature Grade | Extended |
| Pin Count | 28 |
| Supplier Package | SPDIP |
| Mounting | Through Hole |
| PCB changed | 28 |
Documents:
Package Includes:
- 1 x PIC16LF18455-E/SP Microcontroller - Original
| Controller Specifications | |
| Family Name | PIC16 |
| Instruction Set Architecture | RISC |
| Clock Speed | 32MHz |
| Device Core | PIC |
| Device Architecture | PIC |
| Bus Width | 8bit |
| Program Memory Type | Flash |
| Interface Type | I2C/SPI/USART |
| ADC | |
| Number of ADC | Single |
| Number of ADC Channel | 24 |
| ADC Resolution | 12bit |
| DAC | |
| Number of DACs | Single |
| DAC Channels | 1 |
| DAC Resolution | 5bit |
| Electrical Specifications | |
| Minimum Operating Voltage | 1.8V |
| Maximum Operating Voltage | 5.5V |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 125°C |
| Maximum Power Dissipation | 800mW |
| Packaging | |
| Package | SPDIP |
| Mounting | Through Hole |
| Pin Count | 28 |

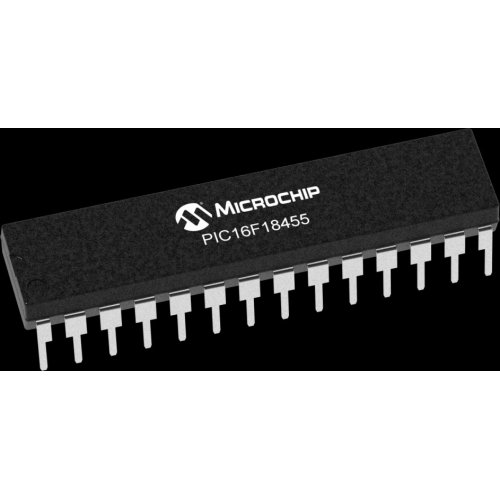

PIC16LF18455-E/SP Microcontroller - Original
- Brand: Microchip Technology
- Product Code:ARO-PIC16LF18455-E-SP
- Reward Points:1
- Availability:In Stock
-
रo 166.38
- Ex Tax:रo 141.00
- Price in reward points:141
-
- 90 or more रo 165.20
- 180 or more रo 164.02
- 460 or more रo 162.84
- 915 or more रo 161.66
