Want to centralize your components to one device? Look no further use this PIC16F877A-E/P microcontroller manufactured by Microchip Technology. This microcontroller has a minimum operating temperature of -40 °C and a maximum of 125 °C. It has a maximum clock speed of 20 MHz. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4 V, while its maximum is 5.5 V. Its ADC resolution is 10. This is a 8 bit processor. Its flash program memory is 14.3KB. This device is based on the PIC core architecture.
Specifications:
| EU RoHS | Compliant |
| Family Name | PIC16 |
| Instruction Set Architecture | RISC |
| Device Core | PIC |
| Core Architecture | PIC |
| Maximum CPU Frequency (MHz) | 20 |
| Maximum Clock Rate (MHz) | 20 |
| Data Bus Width (bit) | 8 |
| Program Memory Type | Flash |
| Program Memory Size | 14KB |
| RAM Size | 368B |
| Programmability | Yes |
| Interface Type | I2C/SPI/USART |
| Number of I/Os | 33 |
| No. of Timers | 3 |
| PWM | 2 |
| Number of ADCs | Single |
| ADC Channels | 8 |
| ADC Resolution (bit) | 10 |
| USART | 1 |
| SPI | 1 |
| I2C | 1 |
| Watchdog | 1 |
| Analog Comparators | 2 |
| Minimum Operating Supply Voltage (V) | 4 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Maximum Power Dissipation (mW) | 1000 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 125 |
| Supplier Temperature Grade | Extended |
| Standard Package Name | DIP |
| Pin Count | 40 |
| Supplier Package | PDIP |
| Mounting | Through Hole |
| PCB changed | 40 |
| Lead Shape | Through Hole |
Documents:
Package Includes:
- 1 x PIC16F877A-E/P Microcontroller - Original
| Controller Specifications | |
| Family Name | PIC16 |
| Instruction Set Architecture | RISC |
| GPIO Pins | 33 |
| Clock Speed | 20MHz |
| Device Core | PIC |
| Device Architecture | PIC |
| Bus Width | 8bit |
| Program Memory Type | Flash |
| Interface Type | I2C/SPI/USART |
| ADC | |
| Number of ADC | Single |
| Number of ADC Channel | 8 |
| ADC Resolution | 10bit |
| Electrical Specifications | |
| Minimum Operating Voltage | 4 |
| Maximum Operating Voltage | 5.5 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 120°C |
| Maximum Power Dissipation | 1000mw |

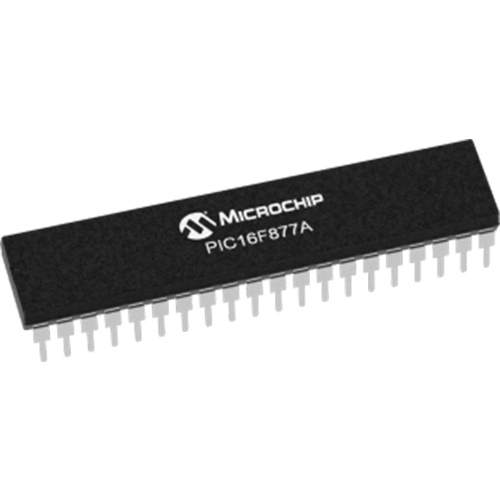

PIC16F877A-E/P Microcontroller - Original
- Brand:: Microchip Technology
- Product Code: :ARO-PIC16F877A-E-P
- Reward Points: :10
- Availability: :In Stock
-
रo 1,045.00
- Price in reward points: 1045
-
- 15 or more रo 1,036.00
- 25 or more रo 1,028.00
- 65 or more रo 1,020.00
- 130 or more रo 1,011.00
