This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchip's powerful PIC architecture into an 28-pin package and is upwards compatible with the PIC16C5X, PIC12CXXX and PIC16C7X devices. The PIC16F72 features 5 channels of 8-bit Analog-to-Digital (A/D) converter with 2 additional timers, capture/compare/PWM function and the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI) or the 2-wire Inter-Integrated Circuit (I²C™) bus. All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances and consumer applications.
Specifications:
| EU RoHS | Compliant |
| Family Name | PIC16 |
| Instruction Set Architecture | RISC |
| Device Core | PIC |
| Core Architecture | PIC |
| Maximum CPU Frequency (MHz) | 20 |
| Maximum Clock Rate (MHz) | 20 |
| Data Bus Width (bit) | 8 |
| Program Memory Type | Flash |
| Program Memory Size | 3.5KB |
| RAM Size | 128B |
| Maximum Expanded Memory Size | 112KB |
| Programmability | Yes |
| Process Technology | CMOS |
| Interface Type | I2C/SPI |
| Number of I/Os | 22 |
| PWM | 1 |
| No. of Timers | 3 |
| Number of ADCs | Single |
| ADC Channels | 5 |
| ADC Resolution (bit) | 8 |
| SPI | 1 |
| I2C | 1 |
| Watchdog | 1 |
| Analog Comparators | 2 |
| Minimum Operating Supply Voltage (V) | 2 |
| Typical Operating Supply Voltage (V) | 5|2.5|3.3 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Maximum Power Dissipation (mW) | 1000 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Supplier Temperature Grade | Industrial |
| Pin Count | 28 |
| Supplier Package | SPDIP |
| Mounting | Through Hole |
| PCB changed | 28 |
Documents:
Package Includes:
- 1 x PIC16F72-I/SP Microcontroller - Original
| Controller Specifications | |
| Family Name | PIC16 |
| Instruction Set Architecture | RISC |
| Clock Speed | 20MHz |
| Device Core | PIC |
| Device Architecture | PIC |
| Bus Width | 8bit |
| Program Memory Type | Flash |
| Interface Type | I2C/SPI |
| ADC | |
| Number of ADC | Single |
| Number of ADC Channel | 5 |
| ADC Resolution | 8bit |
| Electrical Specifications | |
| Minimum Operating Voltage | 2V |
| Maximum Operating Voltage | 5.5V |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Maximum Power Dissipation | 1000mW |
| Packaging | |
| Package | SPDIP |
| Mounting | Through Hole |
| Pin Count | 40 |

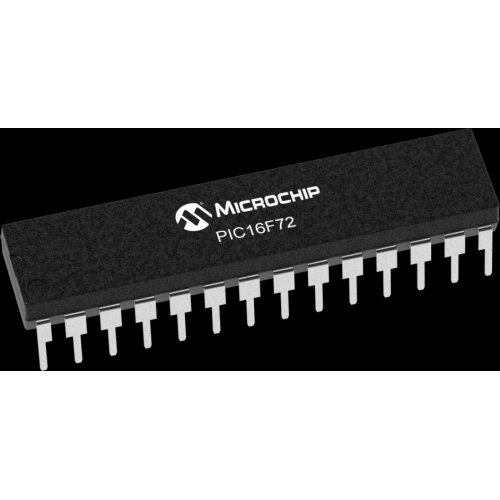

PIC16F72-I/SP Microcontroller - Original
- Brand: Microchip Technology
- Product Code:ARO-PIC16F72-I-SP
- Reward Points:4
- Availability:In Stock
-
रo 500.32
- Ex Tax:रo 424.00
- Price in reward points:424
-
- 30 or more रo 496.78
- 60 or more रo 493.24
- 150 or more रo 488.52
- 300 or more रo 484.98
