PIC16(L)F1885X/7X microcontrollers feature Analog, Core Independent Peripherals and communication peripherals, combined with eXtreme Low Power (XLP) for a wide range of general purpose and low-power applications. The family features the CRC/SCAN, HLT and Windowed WDT to support customers looking to add safety to their application. Additionally, this family includes up to 56 KB of Flash memory, along with a 10-bit ADC with Computation (ADC2) for automated signal analysis to reduce the complexity of the application.
Specifications:
| EU RoHS | Compliant |
| Family Name | PIC16 |
| Instruction Set Architecture | RISC |
| Device Core | PIC |
| Core Architecture | PIC |
| Maximum CPU Frequency (MHz) | 32 |
| Maximum Clock Rate (MHz) | 32 |
| Data Bus Width (bit) | 8 |
| Program Memory Type | Flash |
| Program Memory Size | 14KB |
| RAM Size | 1KB |
| Programmability | Yes |
| Interface Type | I2C/SPI/USART |
| Number of I/Os | 25 |
| No. of Timers | 7 |
| PWM | 2 |
| Timers Resolution (bit) | 8/16 |
| Number of ADCs | Single |
| ADC Channels | 24 |
| ADC Resolution (bit) | 10 |
| Number of DACs | Single |
| DAC Channels | 1 |
| DAC Resolution (bit) | 5 |
| USART | 1 |
| SPI | 2 |
| I2C | 2 |
| CAN | 0 |
| Ethernet | 0 |
| Watchdog | 1 |
| Analog Comparators | 2 |
| Minimum Operating Supply Voltage (V) | 2.3 |
| Typical Operating Supply Voltage (V) | 5|2.5|3.3 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Maximum Power Dissipation (mW) | 800 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Supplier Temperature Grade | Industrial |
| Pin Count | 28 |
| Supplier Package | SPDIP |
| Mounting | Through Hole |
| PCB changed | 28 |
Documents:
Package Includes:
- 1 x PIC16F18855-I/SP Microcontroller - Original
| Controller Specifications | |
| Family Name | PIC16 |
| Instruction Set Architecture | RISC |
| Clock Speed | 32MHz |
| Device Core | PIC |
| Device Architecture | PIC |
| Bus Width | 8bit |
| Program Memory Type | Flash |
| Interface Type | I2C/SPI/USART |
| ADC | |
| Number of ADC | Single |
| Number of ADC Channel | 24 |
| ADC Resolution | 10bit |
| DAC | |
| Number of DACs | Single |
| DAC Channels | 1 |
| DAC Resolution | 5bit |
| Electrical Specifications | |
| Minimum Operating Voltage | 2.3V |
| Maximum Operating Voltage | 5.5V |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Maximum Power Dissipation | 800mW |
| Packaging | |
| Package | SPDIP |
| Mounting | Through Hole |
| Pin Count | 28 |

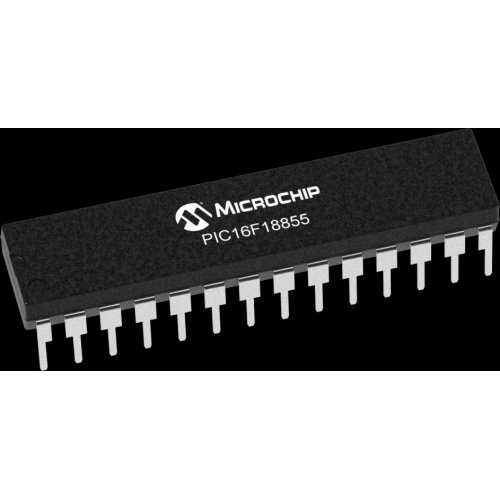

PIC16F18855-I/SP Microcontroller - Original
- Brand: Microchip Technology
- Product Code:ARO-PIC16F18855-I-SP
- Reward Points:2
- Availability:In Stock
-
रo 290.28
- Ex Tax:रo 246.00
- Price in reward points:246
-
- 50 or more रo 287.92
- 100 or more रo 285.56
- 260 or more रo 283.20
- 520 or more रo 280.84
