PIC16F18346 microcontrollers feature Analog, Core Independent Peripherals and communication peripherals, combined with Extreme Low Power (XLP) for wide range of general purpose and low power applications. The Peripheral Pin Select (PPS) functionality enables pin mapping when using the digital peripherals (CLC, CWG, CCP, PWM and communications) to add flexibility to the application design.
Specifications:
| EU RoHS | Compliant |
| Family Name | PIC16 |
| Instruction Set Architecture | RISC |
| Device Core | PIC |
| Core Architecture | PIC |
| Maximum CPU Frequency (MHz) | 32 |
| Maximum Clock Rate (MHz) | 32 |
| Data Bus Width (bit) | 8 |
| Program Memory Type | Flash |
| Program Memory Size | 28KB |
| RAM Size | 2KB |
| Programmability | Yes |
| Interface Type | I2C/SPI/USART |
| Number of I/Os | 18 |
| No. of Timers | 7 |
| Number of ADCs | Single |
| ADC Channels | 17 |
| ADC Resolution (bit) | 10 |
| Number of DACs | Single |
| DAC Channels | 1 |
| DAC Resolution (bit) | 5 |
| USART | 1 |
| SPI | 2 |
| I2C | 2 |
| Minimum Operating Supply Voltage (V) | 2.5 |
| Typical Operating Supply Voltage (V) | 5|3.3 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Maximum Power Dissipation (mW) | 800 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 125 |
| Supplier Temperature Grade | Extended |
| Pin Count | 20 |
| Supplier Package | PDIP |
| Mounting | Through Hole |
| PCB changed | 20 |
Documents:
Package Includes:
- 1 x PIC16F18346-E/P Microcontroller - Original
| Controller Specifications | |
| Family Name | PIC16 |
| Instruction Set Architecture | RISC |
| Clock Speed | 32MHz |
| Device Core | PIC |
| Device Architecture | PIC |
| Bus Width | 8bit |
| Program Memory Type | Flash |
| Interface Type | I2C/SPI/USART |
| ADC | |
| Number of ADC | Single |
| Number of ADC Channel | 17 |
| ADC Resolution | 10bit |
| DAC | |
| Number of DACs | Single |
| DAC Channels | 1 |
| DAC Resolution | 5bit |
| Electrical Specifications | |
| Minimum Operating Voltage | 2.5V |
| Maximum Operating Voltage | 5.5V |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 125°C |
| Maximum Power Dissipation | 800mW |
| Packaging | |
| Package | PDIP |
| Mounting | Through Hole |
| Pin Count | 20 |

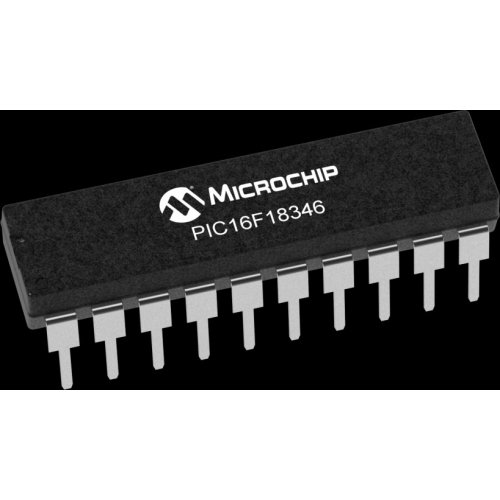

PIC16F18346-E/P Microcontroller - Original
- Brand: Microchip Technology
- Product Code:ARO-PIC16F18346-E-P
- Reward Points:2
- Availability:In Stock
-
रo 311.52
- Ex Tax:रo 264.00
- Price in reward points:264
-
- 50 or more रo 309.16
- 100 or more रo 306.80
- 245 or more रo 304.44
- 490 or more रo 300.90
