Enhanced Mid-Range Core with 49 Instruction, 16 Stack Levels, Flash Program Memory with self read/write capability, 256 Bytes of EEPROM, Internal 32MHz oscillator.
Specifications:
| EU RoHS | Compliant |
| Family Name | PIC16 |
| Instruction Set Architecture | RISC |
| Device Core | PIC |
| Core Architecture | PIC |
| Maximum CPU Frequency (MHz) | 32 |
| Maximum Clock Rate (MHz) | 32 |
| Data Bus Width (bit) | 8 |
| Program Memory Type | Flash |
| Program Memory Size14 | 14KB |
| RAM Size | 1KB |
| Programmability | Yes |
| Interface Type | I2C/SPI/USART |
| Number of I/Os | 36 |
| PWM | 1 |
| No. of Timers | 3 |
| Number of ADCs | Single |
| ADC Channels | 14 |
| ADC Resolution (bit) | 12 |
| Number of DACs | Single |
| DAC Channels | 1 |
| DAC Resolution (bit) | 8 |
| USART | 1 |
| SPI | 1 |
| I2C | 1 |
| Watchdog | 1 |
| Analog Comparators | 4 |
| Minimum Operating Supply Voltage (V) | 2.5 |
| Typical Operating Supply Voltage (V) | 5|3.3 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Maximum Power Dissipation (mW) | 800 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Supplier Temperature Grade | Industrial |
| Pin Count | 40 |
| Supplier Package | PDIP |
| Mounting | Through Hole |
| PCB changed | 40 |
Documents:
Package Includes:
- 1 x PIC16F1787-I/P Microcontroller - Original
| Controller Specifications | |
| Family Name | PIC16 |
| Instruction Set Architecture | RISC |
| Clock Speed | 32MHz |
| Device Core | PIC |
| Device Architecture | PIC |
| Bus Width | 8bit |
| Program Memory Type | Flash |
| Interface Type | I2C/SPI/USART |
| ADC | |
| Number of ADC | Single |
| Number of ADC Channel | 14 |
| ADC Resolution | 12bit |
| DAC | |
| Number of DACs | Single |
| DAC Channels | 1 |
| DAC Resolution | 8bit |
| Electrical Specifications | |
| Minimum Operating Voltage | 2.5V |
| Maximum Operating Voltage | 5.5V |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Maximum Power Dissipation | 800mW |
| Packaging | |
| Package | PDIP |
| Mounting | Through Hole |
| Pin Count | 40 |

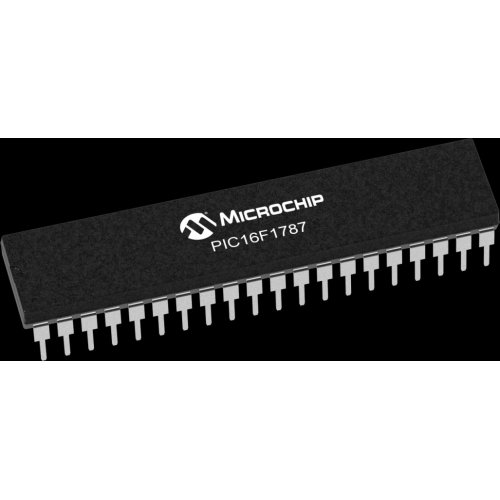

PIC16F1787-I/P Microcontroller - Original
- Brand: Microchip Technology
- Product Code:ARO-PIC16F1787-I-P
- Reward Points:2
- Availability:Out Of Stock
-
रo 247.80
- Ex Tax:रo 210.00
- Price in reward points:210
-
- 60 or more रo 245.44
- 125 or more रo 243.08
- 310 or more रo 241.90
- 615 or more रo 239.54
