Ever wondered about charging your mobile phones and batteries using water?

Is it even possible?
Well. We would like to present to you the Micro Water Turbine – Hydraulic Generator. This little device can turn your running water into electricity! It has a durable plastic shell for better protection and also it is a good solution to save electricity to some extent
How Does This Hydroelectric Generator Work?
This small device works in the same mechanism as a hydropower plant which is normally located in the middle of a river by building a dam. Once you set up this small device with a water flow that has considerable pressure (connect to a faucet, connect at the bottom of a water tank), the pressure of the flowing water helps in rotating a turbine which sits inside the device. This turbine has small blades inside and these blades start rotating when the water hits them. Then this is connected to a motor inside which in turn rotates as well, resulting in generating electricity. Finally, it is connected to a small circuit inside in order to regulate the output voltage.

Features :
  • Compact Size for easy deployment
  • Durable Plastic Shell for better protection
  • Better solution for energy conservation
  • Ability to charge different devices such as lithium batteries, mobile phones, and radios
  • Anti-rust components inside
Specifications for DC-12V:
  • Output Voltage
    • 12 +/- 0.3 VDC water flow 10 L / min
    • 5 ~ 12 +/- 0.3 VDC Water flow 4L / min
    • 3 +/- 0.25 VDC Water flow 3.5L / min
  • Flow range : 3.5 ~ 20L / min (pressure 0.05-0.2mpa)
  • Maximum Output Current : 150mA
  • Resistance Between Line : 10.5 ± 0.5Ω
  • Insulation Resistance : 10MΩ
  • Maximum Working Pressure : 1.2 Mpa
  • Outlet Closed Highest Pressure Resistance : 0.6Mpa
  • Start Water Pressure : 0.05Mpa
  • Axial Clearance : Approx. 0.2~1.0mm
  • Mechanical Noise : ≤ 55dB
  • Generator Single Volume : 90g
  • Generator Life : ≥ 3000h
  • Working Temperature Range : 0 ~ 80 ° C
  • Storage temperature : -25 ~ 65 ° C
  • Maximum allowable ambient temperature : 100 ° C max for 30 min
Specifications for DC-5V:
  • Output Voltage :
    • 5 +/- 0.3 VDC water flow 10 L / min
    • 3 ~ 5 +/- 0.3 VDC Water flow 4L / min
    • 3 +/- 0.25 VDC Water flow 3.5L / min
  • Flow range : 3.5 ~ 20L / min (pressure 0.05-0.2mpa)
  • Maximum Output Current : 150mA
  • Resistance Between Line : 10.5 ± 0.5Ω
  • Insulation Resistance : 10MΩ
  • Maximum Working Pressure : 1.2 Mpa
  • Outlet Closed Highest Pressure Resistance : 0.6Mpa
  • Start Water Pressure : 0.05Mpa
  • Axial Clearance : Approx. 0.2~1.0mm
  • Mechanical Noise  : ≤ 55dB
  • Generator Single Volume : 90g
  • Generator Life :  ≥ 3000h
  • Working Temperature Range : 0 ~ 80 ° C
  • Storage temperature :  -25 ~ 65 ° C
  • Maximum allowable ambient temperature : 100 ° C max for 30 min

Applications:

  • Charge lithium batteries
  • Charge mobile phones
  • Applications that need 5V / 12V stable voltage supply
Package Includes :
  • 1 x Micro Water Turbine - Hydroelectric Generator with G1/2'' Thread

Write a review

Please login or register to review

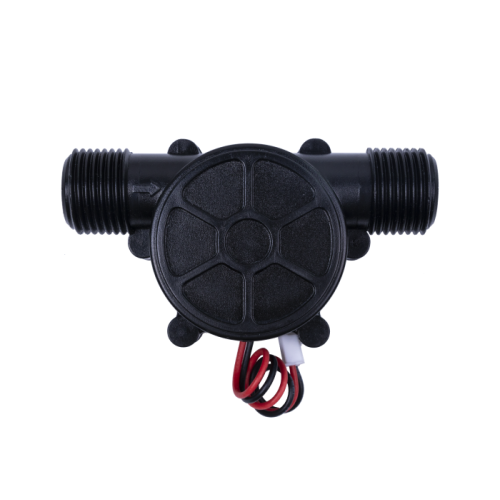

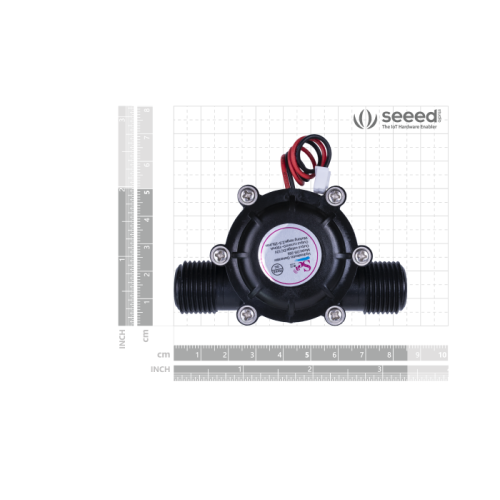

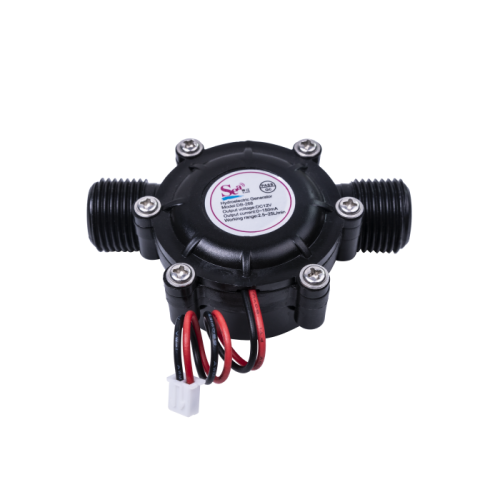

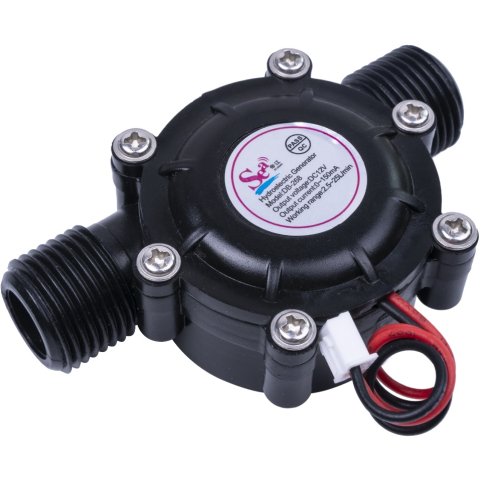

Micro Water Turbine - Hydroelectric Generator with G1/2 inch Thread

  • Brand: Seeed Studio
  • Product Code:Seeed-Micro-Water-Turbine
  • Reward Points:8
  • Availability:Out Of Stock
  • रo 787.00

  • Ex Tax:रo 787.00
  • Price in reward points:787

  • 90 or more रo 707.00
