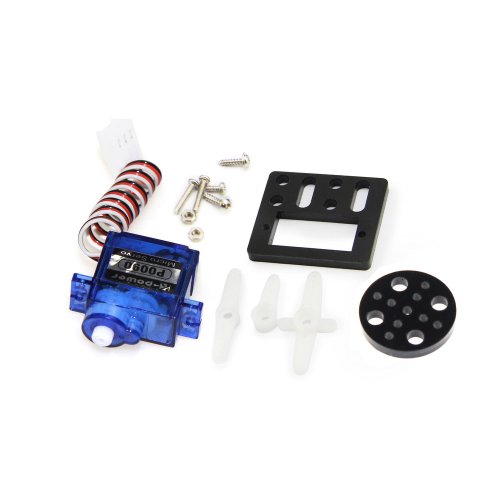

Makeblock 9g Micro Servo Pack is a servo pack for beginners who like to make stuff move , it contains a 9g servo, a servo hub, a servo bracket and hardwares. The 9g Micro Servo can rotate approximately 180 degrees, it works like standard servos but of course not as strong as a standard servo.

With the servo hub and servo bracket, it may be convenient to connect the servo with other parts. A Me RJ25 Adapter also help you to connect the servo with Me Baseboard easily.

Features:

Small volume and light weight
Compatible with Me RJ25 Adapter
A servo hub and a servo bracket are included.

Specifcation

1.Apply Environmental Conditon

No.	Item	Specifcation
1.1	Storage Temperature Range	-20°C～70°C
1.2	Operating Temperature Range	-10°C～60°C

2.Standard Test Environment

No.	Item	Specifcation
2.1	Temperature Range	-10°C～60°C
2.2	Humidity Range	65%±10%

3.Mechanical Specification

No.	Item	Specifcation
3.1	Size	22.4×12.5×22.8mm
3.2	Weight	9g
3.3	Gear type	1 metal gear+4plastic gear
3.4	Limit angle	210°±5°
3.5	Horn type	Plastic, POM
3.6	Case	Engineering plastics(Pc)
3.7	Connector wire	260mm±5mm
3.8	Motor	DC motor

4.Electrical Specification

No.	Operat voltage	4.8V	6.0V
4.1	Idle current	5mA	5mA
4.2	No load speed	0.10sec/60°	0.09sec/60°
4.3	Runnig current	80mA	100mA
4.4	Peak stall torque	1.3kg.cm	1.7kg.cm
4.5	Stall current	650mA	750mA

5.Control Specification

No.	Item	Specifcation
5.1	Command signal	Pulse width modification
5.2	Amplifier type	Analog controller
5.3	Pulse width range	1000～2000usec
5.4	Neutral position	1500usec
5.5	Running degree	120°±3°(when 900～2100usec)
5.6	Dead band width	8 usec
5.7	Rotating direction	Counterclockwise (when 1000～2000usec)
