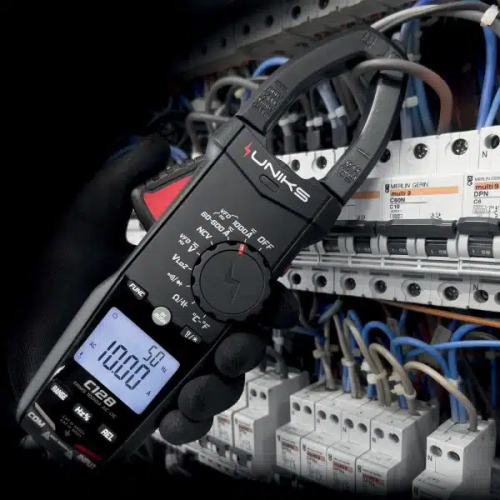

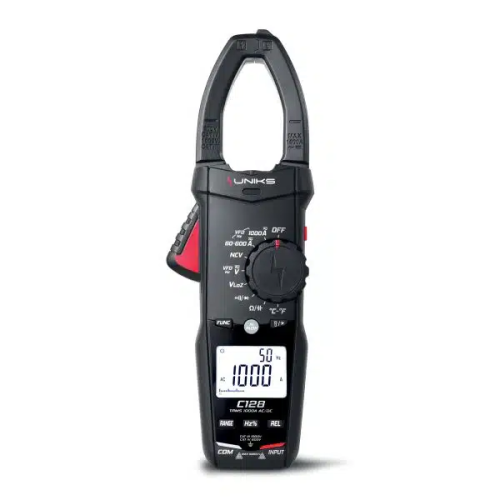

The Metravi Uniks C-128 Digital TRMS AC/DC Clamp Meter is designed for use in both industrial and civil sectors It carries out TRMS measurements of voltage up to 1000V AC/DC* and current from 0.1A up to 1000A AC.

The modern design, the fluid mechanics and the 2″ DUAL DISPLAY function facilitates work in the field, making it the most complete instrument in the range. It is equipped with a built-in voltage detector that turns on if placed near live conductors and an integrated torch that allows you to work even in very dark places.

Features of the Metravi UNIKS C-128 Digital TRMS AC/DC Clamp Meter:

• DC/AC TRMS voltage up to 1000V

• DC/AC TRMS current up to 1000A
• Minimum current value 0.1A
• InRush Current
• Voltage measurement with low impedance VLoz
• Voltage and Current VFD Filter
• Resistance and Continuity test with buzzer
• Capacity and Frequency
• Duty cycle
• Test Diodes
• Temperature

Specifications:

• TRMS AC Current: 0-60A/600/1000A
• Accuracy: ±2.5% reading +8 digits
• DC Current: 0-60A/600/1000A
• Accuracy: ±3% reading +10 digits
• TRMS AC Voltage: 0-6V/60/600/1000V
• Accuracy: ±0.8% reading +5 digits
• DC Voltage: 0-6V/60/600/1000V
• Accuracy: ±0.5% reading +5 digits
• Resistance: 600Ω/6kΩ/60/600/6MΩ/60MΩ
• Accuracy: ±1.0% reading +3 digits
• Capacitance: 60.00nF/6.000/600.0uF/60.00/600.0/6.000mF/60.00mF
• Accuracy: ±4.0% reading +3 digits
• K-type Temperature: -20° to 1000°C / -4° to 1832°F
• Accuracy: ±2.0% reading +2 digits
• Frequency: 100Hz/1000/10kHz
• Non-contact Voltage detection
• InRush Current
• Voltage measurement with low impedance VLoz
• Voltage and Current VFD Filter
• Duty Cycle
• Diode Test
• Polarity Test
• Auto and Manual Range
• Bandwidth for TRMS measurements of 1KHz
• Relative measurements
• Display: 6000 Counts 2 inch Backlit LCD
• REL function
• Data Hold
• Sampling Time: 3 times/second
• Power supply: 1.5V AAA battery ×3
• Low battery indication
• Auto Power-off
• Built-in LED Flashlight
• Over Range indication
• Overload Protection
• Input protection from over-voltage 1000V AC/DC RMS
• Certifications: CATIV 600V, CATIII 1000V

Additional Informations:

• Brand UNIKS by METRAVI
• Colour Black

• Model C-128, UNIKS C-128

• Warranty One year against manufacturing defects

• AC Current 60A/600A/1000A

• AC Current Resolution 0.01A/0.1A/1A

• AC Current Accuracy ±2.5%

• Dc Current 60A/600A/1000A

• DC Current Resolution 0.01A/0.1A/1A

• DC Current Accuracy ±3%

• AC Voltage 6A/60A/600A/1000A

• AC Voltage Resolution 0.001V/0.01V/0.1V/1V

• AC Voltage Accuracy ±0.8%

• DC Voltage 6A/60A/600A/1000A

• DC Voltage Resolution 0.001V/0.01V/0.1V/1V

• DC Voltage Accuracy ±0.5%

• Current frequency 100Hz/1000 Hz/ 10Kz

• Current Frequency Resolution 0.01Hz/ 0.1Hz / 0.001kHz

• Current Frequency Accuracy ±1%

• Duty Cycle Range 1% to 99%

• Duty Cycle Resolution 0.1%

• Duty Cycle Accuracy ±3%

• Voltage Frequency 100Hz/1000Hz /10kHz

• Voltage Frequency Resolution 0.01Hz/ 0.1Hz / 0.001kHz

• Voltage Frequency Accuracy ±1%

• Diode Range 2.000V

• Diode Resolution 0.001V

• Resistance Range 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

• Resistance Resolution 0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ/0.001MΩ/0.01MΩ

• Resistance Accuracy ±1.0%

• Capacitance Range 60.00nF/600.0nF/6.000uF /60.00uF /600.0uF /6.000mF/60.00mF

• Capacitance Resolution 0.01nF/0.1nF/1nF /10nF /100nF/1uF /10uF

• Capacitance Accuracy ±4.0%

• Temperature Range -20～1000℃, （-4～1832℉）

• Temperature Resolution 1℃/2℉

• Temperature Accuracy ±2%

• Sampling Time 3 times/sec

• Power Supply 1.5V, 3 x AA alkaline batteries

• Low Battery Indication yes

• LED Indication yes

• Over Range Indication yes

• Safety Certifications CE, EN-61010-1, EN-61010-2-030, EN-61010-2-032

• Encloser Double Insulation

• Pollution Level Level II

• Display 2 inch Backlit LCD, 6000 Counts, Dual Display with analog bargraph

• Overvoltage Category CATIII 1000V, CATIV 600V


Documentation:

• Wiki

Package Includes:

• 1 x Metravi UNIKS C-128 Digital TRMS AC/DC Clamp Meter
