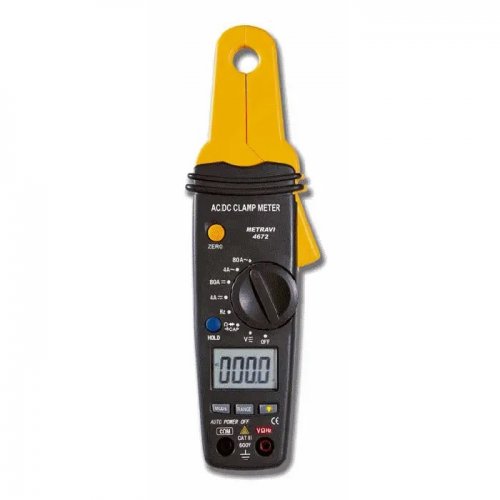

AC/DC Leakage Current Clamp Meter 3-3/4 Digits, LCD, Data Hold, 23mm Jaw Size, AC/DC Voltage, AC/DC Leakage Current measurement, Capacitance, Resistance, Frequency, Duty Cycle, Diode & Continuity Test.

Specifications:

• Data Hold Function
• Auto Power Off
• High Precision AC/DC Low Current Measurement
• Low battery and Overload Indication
• Provides Analogue Output for Recording function.
• DC Voltage: 0 – 400m / 4 / 40 / 400 / 600V
• Accuracy: ±1.0%
• AC Voltage: 0 – 400m / 4 / 40 / 400 / 600V
• Accuracy: ±1.0%
• DC Current: 0 – 4 / 80A
• Accuracy: ±2.8%
• AC Current: 0 – 4 / 80A
• Accuracy: ±3.0%
• Resistance: 0 – 400 / 4k / 40k / 400k / 4M / 40M.Ohms
• Accuracy: ±1.0%
• Capacitance: 0 – 40n / 400n / 4u / 40u / 100uF
• Accuracy: ±3.0%
• Frequency: 0 – 5 / 50 / 500 / 5k / 50k / 500k / 5M / 10MHz
• Accuracy: ±1.2%
• Duty Cycle: 0.5 to 99.0%
• Accuracy: ±1.2%
• Confirms to CE, CAT-III 600V

Documents:

• DT-4672


• Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

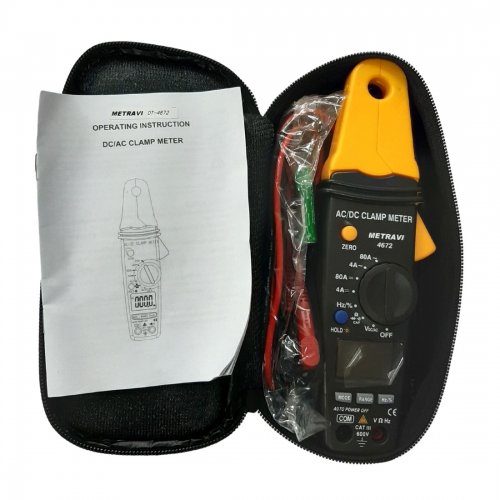

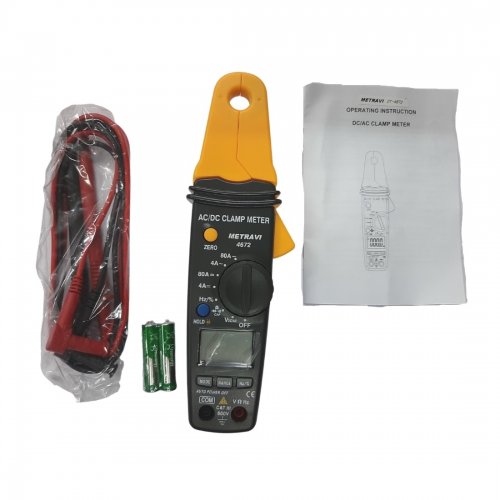

• 1 x Metravi DT-4672 AC/DC Leakage Current Clamp Meter
