3-3/4 Digits, Backlit, LCD Dual Display, T-RMS, RS-232 PC Interface, Internal Memory, Min, Max, Avg, Relative Modes, AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Inductance, Duty Cycle, Temperature, dBm, Logic, Diode, Signal Output & Continuity Test

Specifications:

True RMS LCR Multimeter With RS-232C PC interface facility 10 Memory Location. Time Mode with alarm, clock and stop watch. MIN., MAX., AVG. and relative modes. Data Hold and Run Modes, 20A Fused Protection
Display : 3-3/4 Digits Backlit 3999 Counts
Dual Extra Large LCD
DC Voltage : 0 – 400mV/4V/40V/400V/1000V
Accuracy : ±0.3%
AC Voltage : 0 – 400mV/4V/40V/400V/750V T-RMS.
Accuracy : ±1.0%
DC Current : 0 – 400uA/400mA/20A.
Accuracy : ±1.0%
AC Current : 0 – 400uA/400mA/20A T-RMS.
Accuracy : ±1.5%
Resistance : 0 – 400/4k/40k/400k/4M/40M.Ohms
Accuracy : ±0.5%
Capacitance : 0 – 100uF
Accuracy : ±3.0%
Frequency : 0 – 10 kHz/100kHz/1MHz/10MHz
Accuracy : ±0.01%
Inductance : 0 – 20/50/100H
Accuracy : ±3.0%
Duty Cycle : 0.1% ~ 99.9%
Accuracy : ±1.2%
Temperature: -20°C~+1200°C / 0°F~+2000°F
Accuracy : ±3%
dBm : -25dBm to + 59dBm
Accuracy : ±0.5dBm
Logic Test, Diode Test, Signal Output and Audible Continuity test facility.
Confirms to UL 1244 AND VDE-0411

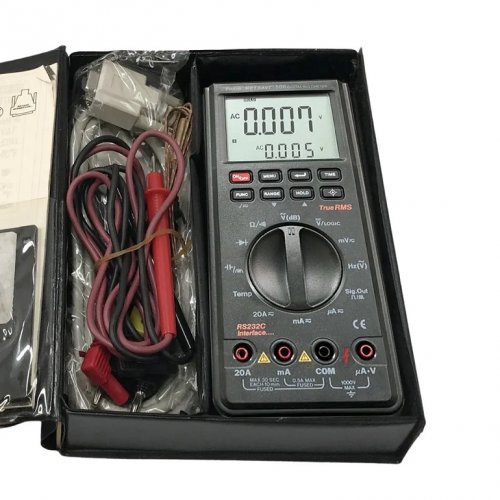

Complete with carrying case, instruction manual, test leads, battery, RS-232C PC Interface cable and software.
