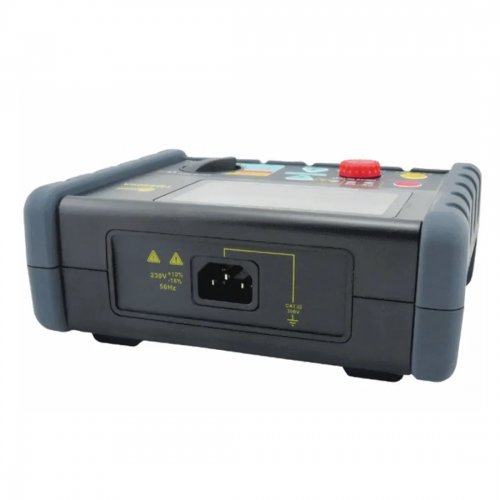

Digital ELCB Tester with Current rating up to 500mA, also reads disconnection time.

Specifications:

• Extra Large Liquid Crystal Display.
• Very low consumption.
• Microprocessor controlled.
• Accurate digital readout of disconnection time.
• Automatic data hold function.
• Zero crossing circuitry permit testing at 0O or 180O.
• Disconnection phase polarity shown on L.C.D. display.
• Auto-off and off override.
• Polarity trip indicator ( Positive or Negative phase )
• Wiring polarity indicator.
• Measure voltage between Line and Earth before testing.
• Current Settings 10mA, 20mA, 30mA, 200mA,300mA, 500mA.
• Phase Start Selection: 0° and 180°
• Over-Temperature Protection, Wiring Correctness Indication , Trip Indicator , Phase Polarity Trip Indicator
• Voltmeter (L-E) 20Vac- 280Vac
• Timer Resolution 1mS(max time=2.999S)
• Timer Accuracy ±2% rdg ±2mS
• Current Accuracy ±5% ±1mA
• Voltmeter Resolution 1Vac
• Voltmeter Accuracy ±2%±1Vac

Documents:

• 1812EL


• Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

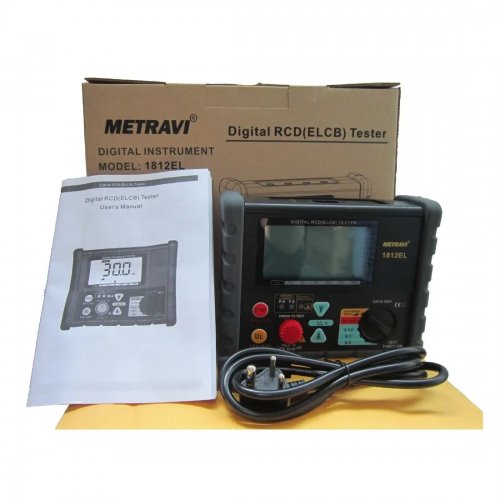

• 1 x Metravi 1812EL Digital ELCB RCD Tester
