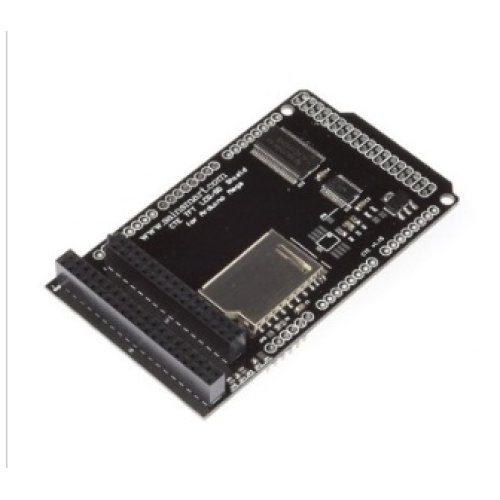

• MEGA2560(R3) 7 inch LCD Extend TFT Shield for Arduino

This is TFT LCD Extend shield for Arduino MEGA2560(R3). Using this shield can help you out of the bothers to use other cables. You just need to plug the module to Arduino MEGA2560(R3)  through this shield.






Now, the TFT LCD Shield is 100% compatible with  Arduino MEGA2560(R3) and fit for tow kind of TFT LCD module

  1. 40pin version LCD which is commonly used in previous version of TFT shield for Arduino MEGA2560(R3) inch LCD Display)
  2. 32pin version LCD which is commonly used in STM32 development board. (unsoldered)



The shield defines that all the the data transmit ports are PC1-PC8 and PC12-PC19,the controll pins are PD0-PD3.The perfect design could realize that the data transmits in high speed.The SPI interface is designed in the ISP header of arduino due so that the SPI transfer with DMA could be achieved in high speed with no drag.



Package List:

  • 1x SainSmart TFT LCD Adjustable Shield



Write a review

Please login or register to review

MEGA2560(R3) 7 inch LCD Extend TFT Shield for Arduino

  • Product Code:Sain-Mega2560-7-Inch-TFT-Extend
  • Reward Points:11
  • Availability:Order now and get it in 15 days
  • रo 1,085.00

  • Ex Tax:रo 1,085.00
  • Price in reward points:1085
