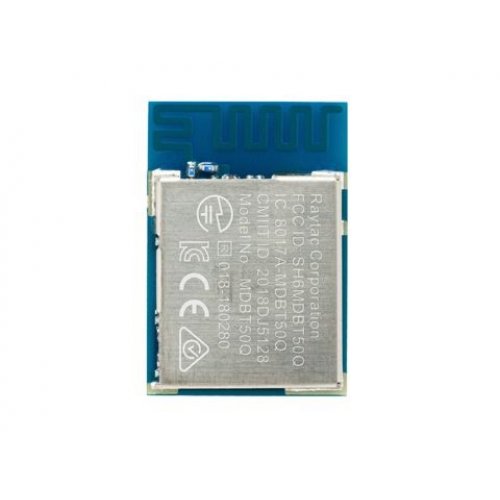

MDBT50Q-P1 is a BT 5.0 stack (Bluetooth low energy or BLE) module designed based on the Nordic nRF52840 SoC solution, which incorporates: GPIO, SPI, UART, I2C, I2S, PMD, PWM, ADC, NFC and USB interfaces for connecting peripherals and sensors.

Features:

• Complete BT5 & BT4.2 low energy solution with integrated chip antenna
• Compact size with 10.5 x 15.5 x 2.2 mm
• BT5 End Product qualified.
• Supports Bluetooth 5, IEEE 802.15.4 & 2.4Ghz RF & ANT upon customer's preference.
• Pre-Certifified Module: FCC/IC/CE/Telec/KC/SRRC/NCC certified.
• Highly flexible multiprotocol SoC ideally suited for Bluetooth® Low Energy and 2.4GHz ultra-low-power wireless applications.

Specifications:

• Bluetooth 5, IEEE 802.15.4, 2.4 GHz transceiver
• -95dBm sensitivity in 1Mbps Bluetooth low energy (BLE) mode
• -103dBm sensitivity in 125Kbps BLE mode (long-range)
• +8 dBm TX power (down to -20 dBm in 4 dB steps)
• On-air compatible with nRF52, nRF51, nRF24L and nRF24AP Series
• Programmable output power from +8dBm to -20dB
• RSSI (1dB resolution)
• Supported data rates:
• Bluetooth 5: 2 Mbps, 1 Mbps, 500 kbps
• 125 kbps IEEE 802.15.4-2006: 250 kbps
• Proprietary 2.4 GHz: 2 Mbps, 1 Mbps
• ARM Cortex –M4 32-bit processor with FPU, 64 MHz
• Memory: 1MB flash / 256KB RAM
• HW accelerated security
• ARM TrustZone Cryptocell 310 security subsystem
• 128 bit AES / ECB / CCM / AAR co-processor (on-the-fly packet encryption)
• Advanced on-chip interfaces
• USB 2.0 full speed (12Mbps) controller
• QSPI 32MHz interface
• High speed 32MHz SPI
• Type 2 near field communication (NFC-A) tag with wake-on field
• Programmable peripheral interconnect (PPI)
• 48 general-purpose I/O pins
• EasyDMA automated data transfer between memory and peripherals.
• 12 bit, 200ksps ADC – 8 configurable channels with programmable gain
• 4 x 4 channel pulse width modulator (PWM) units with EasyDMA
• Audio peripherals: I2S, digital microphone interface (PDM)
• 5 X 32-bit timers with counter mode
• Up to 4 x SPI masters / 3 x SPI slaves with EasyDMA
• Up to 2 x I2C compatible 2-wire masters / slaves
• 2 x UART(CTS/RTS) with EasyDMA
• Quadrature decoder (QDEC)
• 3 x 24-bit real-time counters (RTC)
• Flexible power management
• Supply voltage range 1.7V to 5.5V
• On-chip DC/DC and LDO regulators with automated low current modes
• Regulated supply for external components from 1.8V to 3.3V
• Automated peripheral power management
• Fast wake-up using 64MHz internal oscillator
• 0.4uA at 3V in System OFF mode, no RAM retention
• 1.5uA at 3V in System ON mode, no RAM retention, wake on RTC
• Nordic SoftDevice ready and with support for concurrent multi-protocol
• Operating Temp: -40°C to +85°C

Applications:

• IoT Networks
• Smart home (such as door locks, lighting) sensors and controllers
• Smart city sensor networks
• Industrial IoT sensors and controllers
• Connected white goods
• Personal Area Networks
• Health/fitness sensor and monitor device
• Medical device
• Interactive entertainment devices
• Advanced remote controls
• Gaming controller
• Advanced wearables
• Connected watches
• Advanced personal fitness devices
• Wearables with wireless secure payment
• Connected Health
• Virtual/Augmented Reality applications
• High performance HID Controllers
• Mesh Network

Documents:

• MDBT50Q-P1M Specifications (Ver.G)
• Footprint and Design Guide
• RoHS & REACH Report
• Nordic 3rd Party Bluetooth low energy module

Package Includes:

• 1 x MDBT50Q-P1M nRF52840 Based BLE Module
