Features of the weather resistant MB7489, 4-20HR-MaxSonar-WRMI, include millimeter resolution, short to long distance detection, range information from 500mm to 5000mm to the target with the largest acoustic return, a 7.5Hz read rate, and the industry standard 20-4mA output where 20mA is minimum range and 4mA is maximum range.

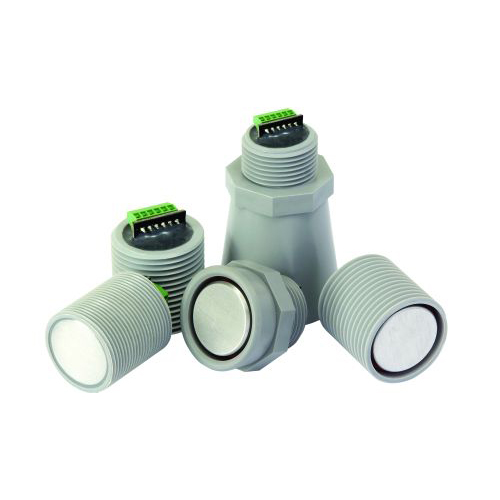

The MB7489 from the 4-20HR-MaxSonar-WR line of outdoor sensors is a rugged ultrasonic sensor component module. This sensor comes in a compact and robust PVC housing which meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings (this product has multiple housing options available).
The 4-20HR-MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.
The MB7489 is designed to report the distance to the largest acoustic return while ignoring smaller targets. When targets are of similar amplitude reflections, preference is given to the closest target. This gives users the flexibility to consistently detect larger targets in the presence of clutter and noise.
If the largest target is removed from the field of view, the MB7489 will switch to the target that gives the next largest detectable return. This filtering makes the MB7489 one of our most advanced sensors for outdoor tank and bin applications.
In addition, the MB7489 offers virtually noise free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.
Specifications:
- Resolution of ~1.6mm
- Analog current output of 4-20mA
- 7.5Hz read rate
- 42kHz ultrasonic sensor measures distance to objects
- RoHS compliant
- CE compliant
- Internal or external temperature compensation
- Virtually no sensor dead zone, objects closer than 50cm typically range as 50cm
- Maximum Range of 5-meters (196 inches)
- Operates from 10V-32VDC
- <40mA average current requirement
- Small, light‑weight module
- Designed for easy integration into your project or product
- Operational temperature -40°C to +65°C (-40°F to +149°F)
- Real-time automatic calibration (voltage, humidity, and ambient noise)
- Firmware filtering for excellent noise tolerance and clutter rejection
- Weather resistant (IP67), optional chemical resistant F-Option
- Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4-inch National Pipe Thread Straight)
- Long, narrow detection zone
- Most-likely filter
- Great for liquid level measurement
- 20mA is the minimum reported range and 4mA is maximum reported range
Models with additional chemical resistance are available
The F-Option (IP68) design modification provides our weather resistant sensors with extra protection against corrosive chemical environments. Ask for the F-Option (IP68) when ordering.
The MaxBotix F-Option (IP68) provides additional protection necessary in a few hazardous chemical environments. Extremely corrosive gases or liquids can degrade or compromise the operation of the sensing unit. As a result, we offer a more chemically inert seal which allows our sensors to operate in all but the harshest of chemical environments. In addition to the chemical resistance, the sensor has improved performance in wet or dust environments.
Please Note: Our sensors are designed for operation in normal atmosphere (air). Please be aware that the speed of sound and atmospheric attenuation may change as a result of the transmission properties of different chemical/air mediums. Users are strongly encouraged to characterize and test the operation of the sensor in the new medium to verify operation, and properly scale the outputted range information.
F-Option
The exposed materials of a properly mounted MaxSonar‑WR sensor with the F-Option (IP68) added are: Aluminum (oxidized surface), PVC, & Fluorosilicone (with an additional back up FEP Teflon® seal).
Standard Weather Resistant Models
The exposed materials of a properly mounted MaxSonar‑WR standard sensor are: Aluminum (oxidized surface), PVC, & silicone rubber (VMQ).
Compatibility:
The F‑Option is compatible with the following sensor lines:
- HRXL‑MaxSonar‑WR
- HRXL‑MaxSonar‑WRS
- SCXL‑MaxSonar‑WR
- SCXL‑MaxSonar‑WRS
- I2CXL‑MaxSonar‑WR
- XL‑MaxSonar‑WR
P-Option :
Provides a Parylene coating as a barrier to help prevent corrosion of the aluminum transducer.
Shielded Cable Attach :
Comes with 3ft of cable.
Part Numbers :
All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.
Base :
| M B 7 4 8 9 |
Three-digit product code :
| CELL 1 | CELL 2 | CELL 3 |
Example :
| 1 | 0 | 0 |
CELL 1:
Housing Style :
| 0 | Not Applicable |
| 1 | 3/4" NPS WR |
| 2 | 3/4" NPS WRC |
| 3 | Ultra Compact |
| 4 | Ultra Compact Flush Mount |
| 5 | 1" NPS |
| 6 | 1" BSPP |
| 7 | 30MM 1.5 |
| 8 | Extended Horn |
CELL 2 :
Options Selected :
| 0 | No Options(Bagged) |
| 1 | F-Option |
| 2 | P-Option |
| 3 | F-Option and P-Option |
| 4 | No Options(Trayed) |
| 5 | TTL(Bagged) |
| 6 | TTL(Trayed) |
CELL 3 :
Wire Attach :
| 0 | No Wire Attach |
| 1 | Wire Attached |
The following table displays all of the active and valid part numbers for this product.
Active Part Numbers :
| MB7489-100 | MB7489-101 | MB7489-102 | MB7489-103 |
| MB7489-120 | MB7489-121 | MB7489-130 | MB7489-131 |
| MB7489-200 | MB7489-201 | MB7489-210 | MB7489-211 |
| MB7489-220 | MB7489-221 | MB7489-230 | MB7489-231 |
| MB7489-500 | MB7489-501 | MB7489-510 | MB7489-511 |
| MB7489-520 | MB7489-521 | MB7489-530 | MB7489-531 |
| MB7489-600 | MB7489-601 | MB7489-610 | MB7489-611 |
| MB7489-620 | MB7489-621 | MB7489-630 | MB7489-631 |
| MB7489-700 | MB7489-701 | MB7489-710 | MB7489-711 |
| MB7489-720 | MB7489-721 | MB7489-730 | MB7489-731 |
Documents:
- 4-20HR-MaxSonar-WRMI-datasheet
- Sensor Selection Guide
- RoHS Declaration of Conformity
- CE Declaration of Conformity
- MTBF Report
- High Resolution Pictures.zip
Package Includes:
- 1 x Maxbotix MB7489 4-20HR-MaxSonar-WRMI
