MAX232 converts signals from an RS-232 serial port to signals suitable for use in TTL compatible digital logic circuits. The MAX232 is a dual driver/receiver and typically converts the RX, TX, CTS and RTS signals.
Features:
- Input voltage levels are compatible with standard СMOS levels
- Output voltage levels are compatible with EIA/TIA-232-E levels
- Single Supply voltage: 5V
- Low input current: 0.1μA at ТA= 25 °С
- Output current: 24mA
- Latching current not less than 450mA at ТA= 25°С
- The transmitter outputs and receiver inputs are protected to ±15kV Air ESD
Application:
- Battery-Powered RS232 Systems
- Terminals
- Modems
- Computers

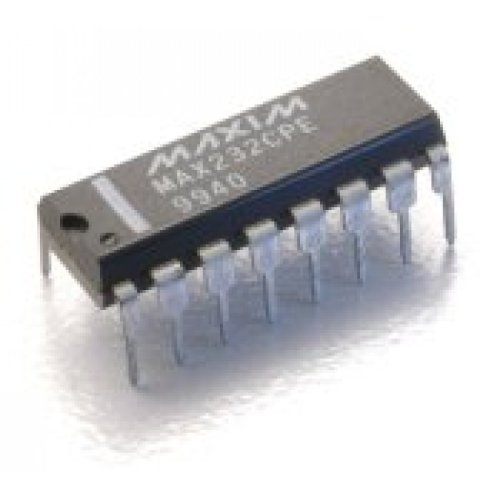

MAX232 Serial Port to TTL Converter
- Product Code:Vishal-MAX232-Serial-Port-TTL-Converter
- Reward Points:1
- Availability:0 - 1 Day
-
रo 22.42
- Ex Tax:रo 19.00
- Price in reward points:19
