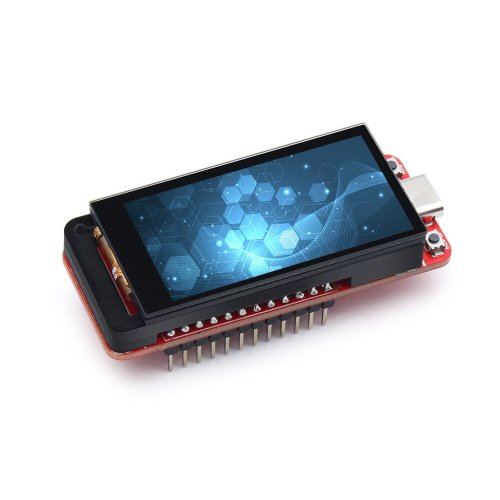

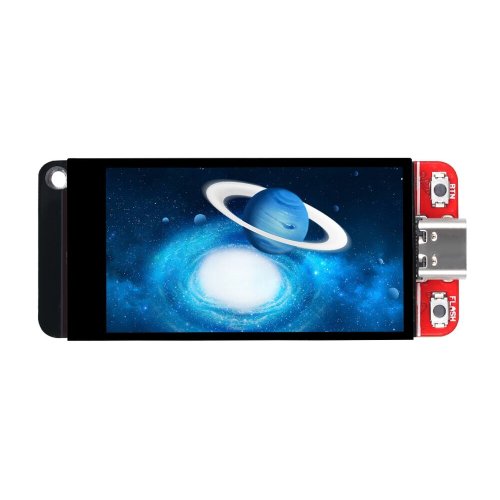

Makerfabs MaTouch 1.9” has got lots of interests, but we got many feedback that there the ESP32S3 pins should be breakout, for users’ application, so we designed this new board.

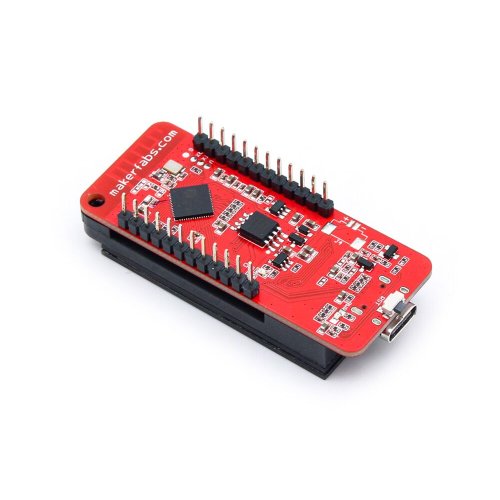

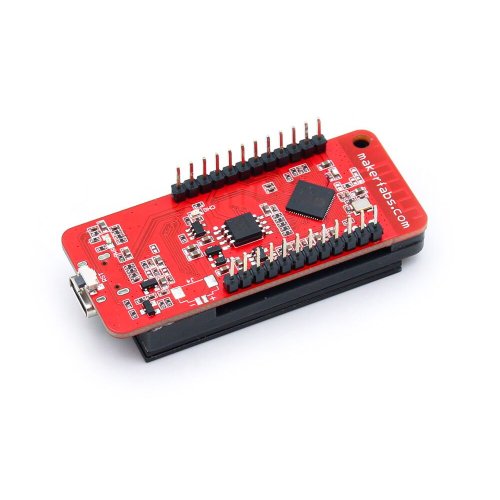

Compares to the old version, there main updates are the GPIO all been breakout, users can prototype it more easily with a breadboard, or use it as a “controller” for other boards by inserting it to other boards.

Specifications:

• Controller: ESP32-S3
• Wireless: WiFi& Bluetooth 5.0
• LCD: 1.9", 320x170 resolution, driver ST7789V2
• LCD interface: 8 bit 8080
• Touch Panel Driver: CST816D
• USB: USB Native, Type-C
• Power Supply: USB Type-C 5.0V(4.0V~5.25V); 3.7V Lipo battery
• Button: Flash button and reset button
• MicroSD: Yes
• Arduino support: Yes
• MicroPython support: Yes
• Operation temperature: -40℃ to +85℃

Documentations:

• Github
• ESP32S3 Datasheet
• Wiki

Package Includes:

• 1 x Makerfabs MaTouch 1.9“ TFT Breakout
