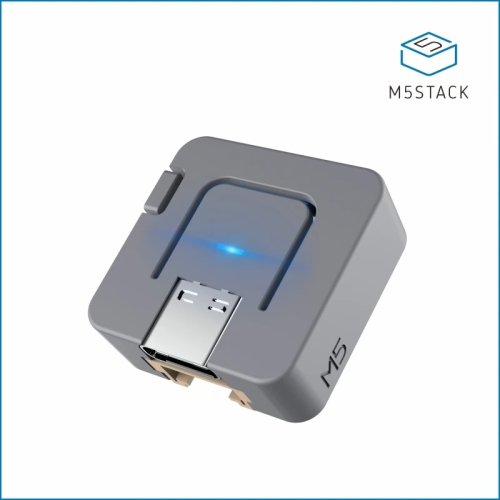

Atom Lite, which has a size of only 24x24mm, is a very compact development board in the M5Stack development kit series. It provides more GPIOs for user customization which is very suitable for embedded smart home devices and in making smart toys. The main control adopts the ESP32-PICO chip which comes integrated with Wi-Fi and Bluetooth technologies and has a 4MB of integrated SPI flash memory. Atom Lite board provides an Infra-Red LED, a RGB LED, buttons, and a HY2.0 interface. In addition, it can connect to external sensors and actuators through 6 GPIOs. The on-board Type-C USB interface enables rapid program upload and execution.

Features:

ESP32-based
RGB LED(SK6812)
Programmable button
Built-in Infra-red
Extendable Pins & Holes
Program Platform: Arduino, UIFlow

Specifications:

Resources	Parameter
ESP32	240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth
Flash	4MB
Power Input	5V @ 500mA
Port	TypeC x 1, GROVE(I2C+I/0+UART) x 1
PIN Port	G19, G21，G22，G23，G25, G33
RGB LED	SK6812 3535 x 1
IR	Infrared transmission
Button	Custom button x 1
Antenna	2.4G 3D Antenna
Operating Temperature	32°F to 104°F ( 0°C to 40°C )
