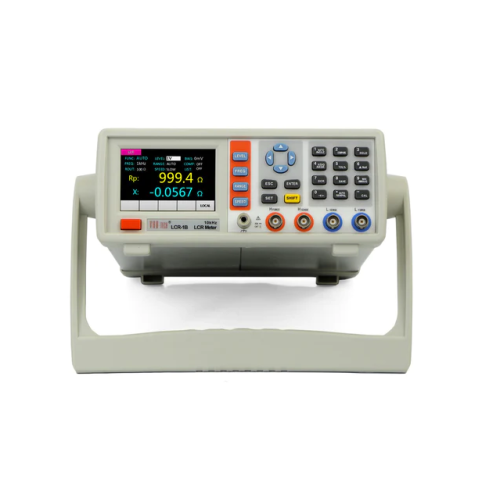

Model: LCR-1 B, L.C.R. METER, Bench Top, Mains Oper., L-C-R-D-Q Etc. Measurements with Auto Detection. 5 Digits in 3.5" Colour LCD Display, 10 Hz~10 KHz C.V., W/USB & RS232.

• LCR 1B : Frequency 10 Hz ~ 10 KHz Continuously variable
• LCR 2A : Frequency 100 Hz ~ 10 KHz adjustable in steps

Specifications:

• Test Parameters: L / C / R / Z & X / D / Q / θ / ESR. Basic Accuracy : 0.1%
• Test Frequencies: 10 Hz ~ 10 KHz Continuously adjustable in 1 Hz steps
• Display Digits: 5 Digits for both Primary and secondary display
• Measurement Range
• L 0.001μH - 9999H
• C 0.001pF - 9999μF
• R 0.0001Ω - 99.99MΩ
• Measurement Speed: Fast : 10, Medium : 5, Slow : 2 (Times / Second)
• Internal Bias: 0 mV ~ 1500 mV, Adjustable in 1 mV steps
• Test Level (Vrms): 100 mV ~ 2000 mV Level, Continuously Adjustable in 1 mV steps
• Correction Functions: Open / Short
• Measurement Terminals: Five Terminals
• Comparator: 5 Gear Sorting : 3 Qualified, 1 Failed & 1 Ancillary.
• Interface (Optional): Handler, RS 232 & USB.
• Power Supply: 220 V AC (±10%), 50 Hz (± 5%), ≤ 10W.
• Environment: 0 ~ 40 °C, R.H. < 80%.
• Accessories: User’s Manual, Mains Cord & 4 Terminal Kelvin Test Leads.
• Weight & Dimensions: (W x H x D) Approx. 2.3 Kgs., 265 mm x 105 mm x 305 mm
