This Lora relay helps to extend the Lora networks to control actuators/ lights/ motors, to create automatic applications such as farming, aquaculture, and pasture.
- There 4 channels of the relay on the board, with max current 10A@277V AC. The main controller Atmega328P is Arduino Uno bootloader pre-loaded, which allows the users to program it with Arduino IDE directly. There also the Lora Relay 30A for higher power applications.
- Makerfabs CP2104 USB to Serial Converter Arduino Programmer is strongly suggested for re-programming:
Features:
- ATMEL Atmega328P: High Performance, Low Power Atmel®AVR® 8-Bit
- Microcontroller
- Speed Grade: 20Mhz
- Flash: 32Kbytes
- RAM: 2KBytes
- EEPROM: 1Kbytes
- Relay Type: General Purpose
- Rated Current of Relay Contact: 10A
- Coil Type of Relay: Non Latching
- Coil Voltage of Relay: 5V
- Switching Voltage of Relay: (277VAC, 28VDC) Max
- Lora Distance: >2 km
- DC 5V ~ 12V
Documents:
Package Includes:
- 1 x Makerfabs 4-Channel Lora Relay 10A
WhatsApp

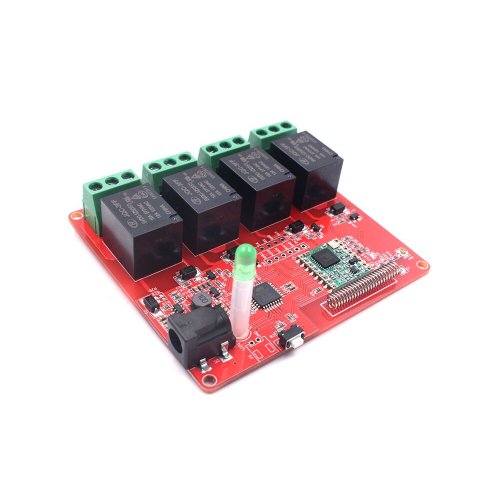

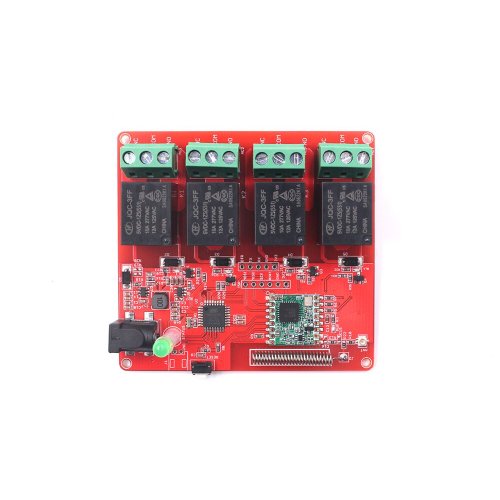

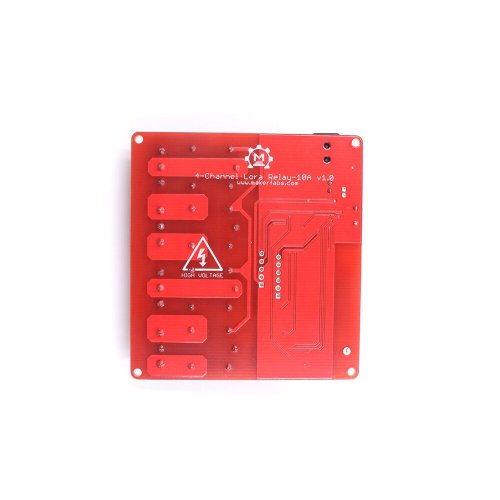

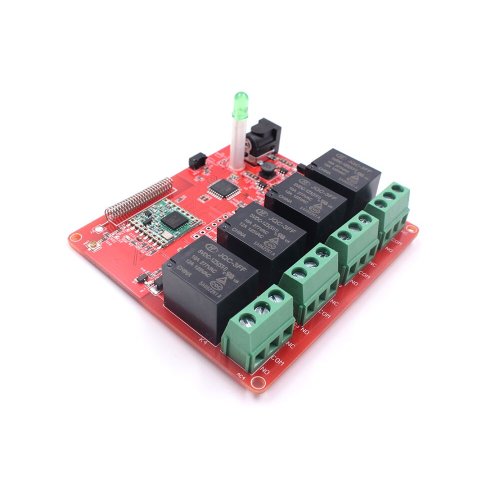

Makerfabs LORA4REL 4-Channel Lora Relay 10A
- Brand:: Makerfabs
- Product Code: :MakeF-LORA4REL
- Reward Points: :18
- Availability: :In Stock
-
रo 1,843.15
- Price in reward points: 1843
-
- 6 or more रo 1,755.80
- 10 or more रo 1,742.11
- 20 or more रo 1,727.38
- 50 or more रo 1,713.67
- 100 or more रo 1,700.00
