You may travel around the world but will face a situation where you cannot find a suitable power adapter for your Type-C powered device, because different regions use different types of power adapters.

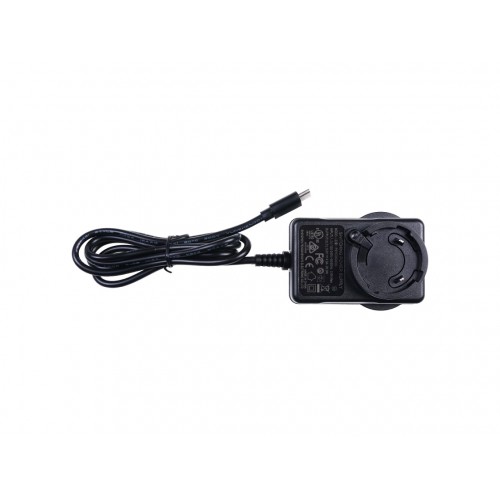

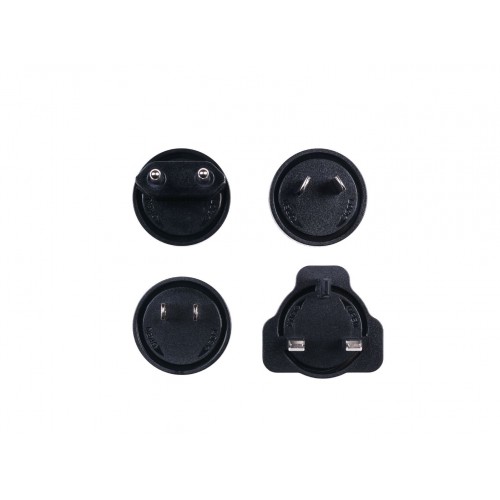

If you have this international wall adapter power supply, you do not have to worry about this problem anymore. This adapter can supply a voltage of 5VDC at 4A and can power devices with a USB Type-C port. It has 4 different adapter plugs that suit the regions; US, AU, UK and EU and the design of the plugs allows them to be easily attached to the adapter.

Specifications:

  • Input:
    • Input Voltage Range 90Vac to 264Vac
    • Rated Input Voltage 100Vac to 240Vac
    • Input Frequency Range 47Hz to 63Hz
    • Input Current 1.3A max at 100-240Vac
    • Inrush Current 60A max. at 100-240Vac input for a cold start at 25℃
    • Average Efficiency While input 115Vac and 230Vac, the average efficiency is more than 83.084%.
    • The test point is at 25%, 50%, 75% and 100% of max load respectively
    • No-Load Input Power Dissipation Input 115Vac or 230Vac, output no load, the input power loss is less than 0.1 W.
  • Output:
    • Output Regulation
      • Minimum: 4.75VDC
      • Maximum: 5.35VDC
    • Output Load
      • Minimum: 0.0A
      • Maximum: 4.0A
    • Ripple and Noise: 200mVp-p
    • Output Overshoot: 10%
    • Line Regulation: +/-1%
    • Load Regulation: +/-5%
    • Turn-on Delay Time: 3000mS
    • Hold up time:
      • 10mS
      • 20mS
  • Environmental Conditions:
    • Operating Temperature 0℃~40℃
    • Storage Temperature 30℃~70℃
    • Operating Humidity 10%~90%
    • Storage Humidity 10%~90%

Package Includes:

  • 1 x Adapter with Type-C cable
  • 1 x US plug
  • 1 x AU plug
  • 1 x UK plug
  • 1 x EU plug

Write a review

Please login or register to review

International Wall Adapter Power Supply 5VDC 4A – Type-C (with US/AU/UK/EU plugs)

  • Brand: Seeed Studio
  • Product Code:Seeed-Adapter-5V-4A-Type-C
  • Reward Points:13
  • Availability:In Stock
  • रo 1,557.60

  • Ex Tax:रo 1,320.00
  • Price in reward points:1320

  • 90 or more रo 1,384.14
