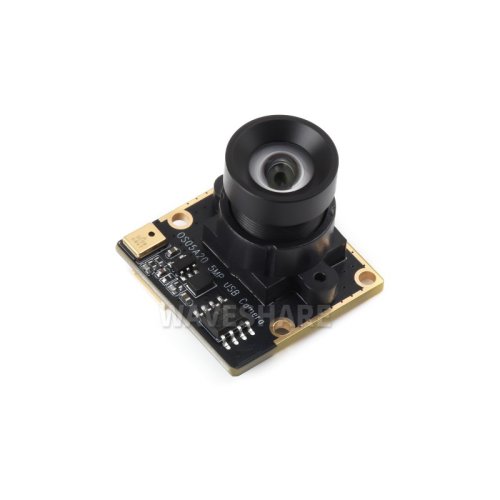

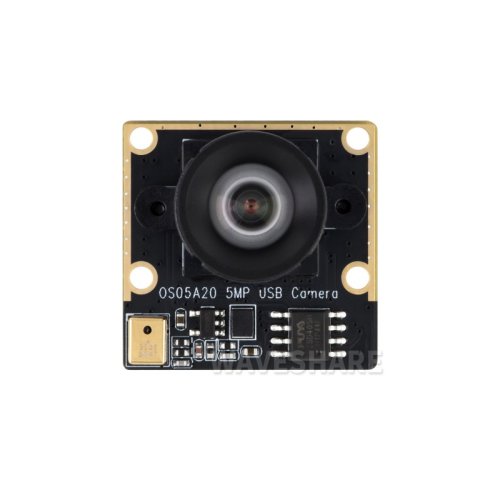

5MP USB camera module

OS05A20 sensor, USB2.0 port, 91.7° FOV distortion-free lens

Specifications:

• Pixels : 5MP
• Sensor : OS05A20
• Interface : USB 2.0
• Camera : Sensor size : 1/2.7inch
• Aperture (F) : 2.4
• Focal length (EFL) : 3.25mm
• Field of view (FOV) : 91.7° (D)
• Distortion : <-1.22%
• Focusing : Fixed-focus
• Mount : M12
• Shutter Mode : Rolling shutter
• Image : Format support : MJPG
• Static image resolution : 2592 × 1944
• Video recording : 30 FPS 2592 × 1944
• 30 FPS 1920 × 1080
• 30 FPS 1280 × 720
• Dynamic range : 74dB
• Operating voltage : 5V ± 5%
• operating temperature : -10°C ~ 60°C
• Module size : 25 × 24 (mm)

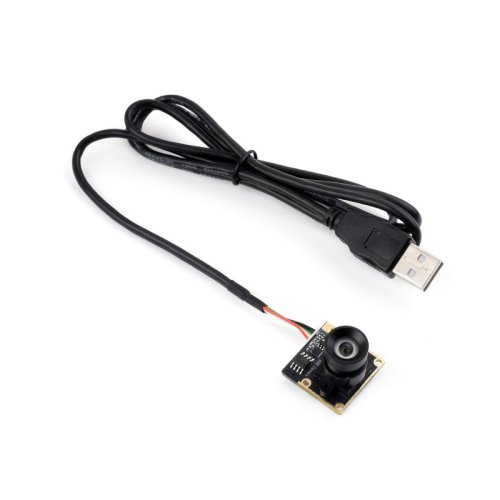

Connecting with USB cable:

                               Connecting to Raspberry Pi 5                                                                  Connecting to Jetson Orin kit

5MP High resolution:

Supports 30 FPS output, suitable for capturing details

Better Low-light sensitivity:

Provides a better imaging effect in low light condition

Wide Dynamic Range

Supports Dual-Exposure On-Chip HDR for maintaining image details and quality in high contrast scenes

Distortion-Free:

Equipped with a distortion-free lens with a distortion rate of less than -1.22%, delivering undistorted imaging and more accurate reproduction of real-world scenes

Onboard Microphone:

Onboard single microphone, supporting simultaneous audio recording

Pinout Definition:

Outline dimensions:

Resources & Services:

Documentations:

• Wiki

Package Includes:

• 1 x OS05A20 5MP USB Camera (C)
