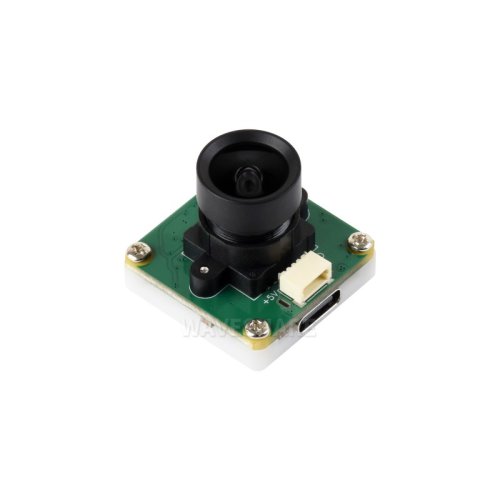

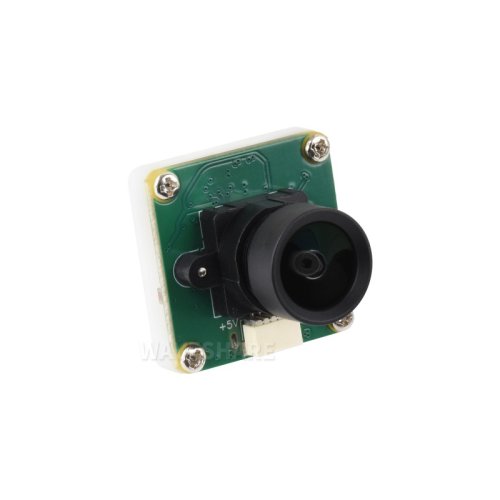

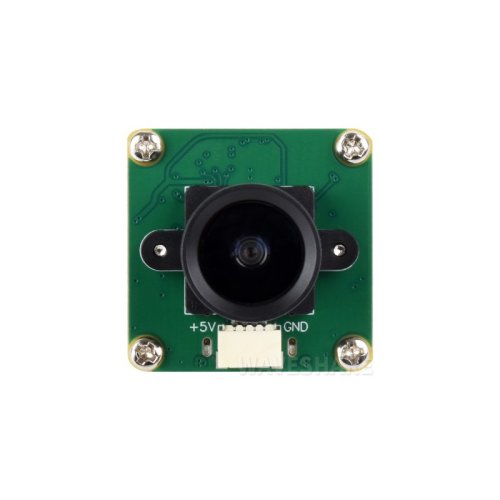

OV4689 4MP USB camera:

OV4689 sensor | USB 2.0 Type-C port | 92° distortion-free lens

Specifications:

• Pixels : 4MP
• Sensor : OV4689
• Interface : USB2.0 Type-C port / SH1.0 4PIN header
• Camera : Sensor size : 1/3 inch
• Aperture (F) : 2.7
• Focal length (EFL) : 2.88mm
• Field of view (FOV) : 92°
• Distortion : <-0.2%
• Focusing : Fixed-focus
• Mount : M12
• Image : Format support : MJPG, YUY2
• Static image resolution : 2688 × 1520
• Video recording : MJPG
• 30 FPS 2688 × 1520
• 30 FPS 2560 × 1440
• 60 FPS 1920 × 1080
• 60 FPS 1280 × 720
• 60 FPS 640 × 480
• YUY2:
• 2 FPS 2688 × 1520
• 2 FPS 2560 × 1440
• 5 FPS 1920 × 1080
• 10 FPS 1280 × 720
• 30 FPS 640 × 480
• Operating voltage : 5V ± 5%
• operating temperature : -10°C ~ 60°C
• Module size : 25.00 × 25.00 (mm)

4MP High resolution:

Supports 60 FPS output, suitable for capturing details

Better Low-light sensitivity:

OV4689 adopts Backside-Illuminated (BSI) technology, providing better

imaging effect in low light condition

Plug and Play, Easy Connection:

Onboard USB 2.0 port, driver-free, compatible with various USB hosts such as PC and smart devices, simply plug it in to start using

for reference only, please refer to the package content for the detailed part list.

Connecting with USB cable:

Connecting to Raspberry Pi 5     Connecting to Jetson Orin kit          Connecting to RDK X5 Development Board

for reference only, the Raspberry Pi 5, Jetson Orin kit and RDK X5 Development Board are NOT included

Pinout Definition:

Outline dimensions:

Resources & Services:

Documentations:

• Wiki

Package Includes:

• 1 x OV4689 4MP USB Camera (A)
• 1 x SH1.0 4PIN dual plug cable
