To help customers evaluate the cameras or build a prototype with your own circuits without dealing with fine pin pitch flex cable or soldering balls, Arducam released the evaluation kit with camera breakout boards and Arducam USB2/USB3 camera shield without writing a single line of code.

The Arducam monochrome (B&W) global shutter VGA resolution OV7251 MIPI camera module is mainly designed for Raspberry Pi boards, and it can be connected directly to RPi’s CSI-2 camera interface without additional hardware. This camera is based on a 1/7.5-inch Omnivision OV7251 image sensor which adopts OmniPixel3-GS™ technology to provide full-frame, sub-sampled, and windowed 8/10-bit MIPI images, and capable of operating at up to 100fps in VGA resolution with complete user control over image quality. The sensor's global shutter and excellent low-light sensitivity allow it to be used for any application that needs gesture detection, head and eye tracking, and depth and motion detection.

Features:

• Sensor: Monochrome global shutter OV7251
• Pixel Size: 3 μm x 3 μm
• Active array size: 640*480
• Optical Size: 1/7.5 inch
• EFL: 1.3mm
• F.NO: 2.2
• IR Sensitivity: build-in 650nm IR cut filter (Check IR sensitive version with SKU EK027)
• FOV: D86.5 Deg./H72.9 Deg./V57.7 Deg.
• Focusing Range: 65mm ~ infinite
• Output interface: USB 2.0
• Output formats: 8/10-bit BW RAW
• Maximum image transfer rate: 640 x 480: 130 fps
• Board Size: 40mm x 40mm

Applications:

• Cellular phones
• Toys
• Tablets
• Machine vision
• ARM/FPGA/DSP based platforms

Documentations:

• Arducam Camera Evaluation Kit - Windows Driver Installation
• Arducam Camera Evaluation Kit - SDK&API

Package Includes:

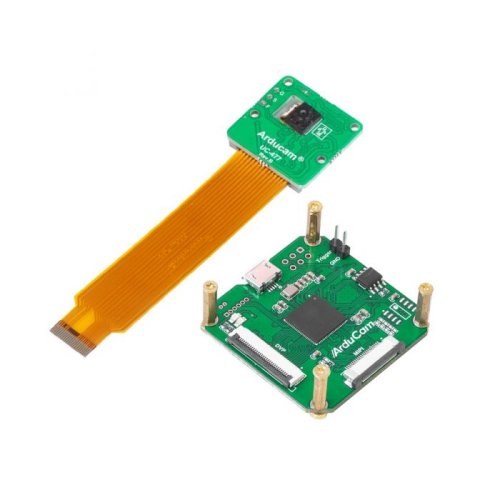

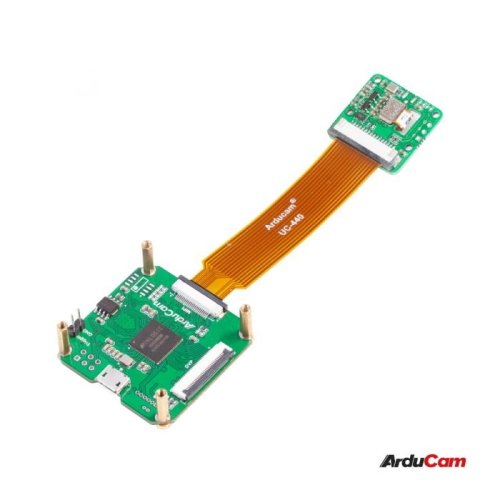

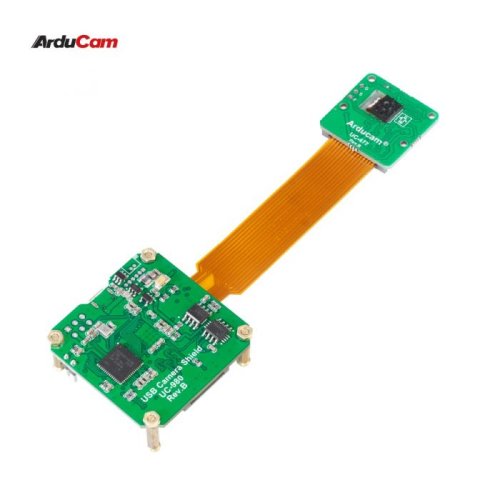

• 1 x Arducam OV7251 1/7.5-inch Monochrome Camera Module
• 1 x Arducam USB2 Camera Shield - Support MIPI Interface Sensors
• 1 x USB2 Cable
