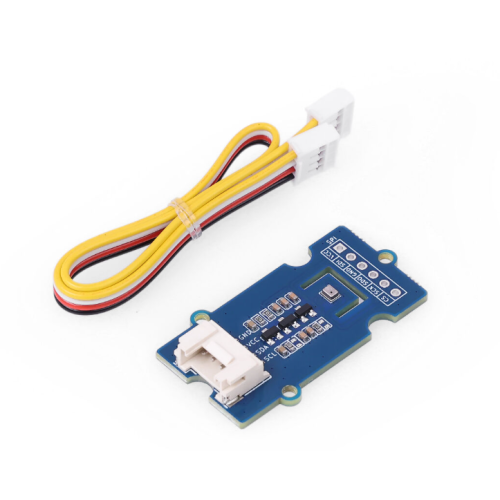

Grove - Temperature and Barometer Sensor(SPA06-003) is a high-precision and a low-current environmental sensor measures the temperature and barometer. It supports both I2C and SPI communication and we provide the SPA06-003 Arduino library.

Features:

Note: As the sensor is quite sensitive to the environmental conditions, please DO NOT touch it with your fingers.

• Wide measurement range: Pressure measurements range from 300hPa~1100hPa and temperature measurements range from -40℃~+85℃.
• High accuracy: The absolute accuracy of ±0.3 hPa for pressure measurement and ±1 ℃ accuracy for temperature measurement.
• Long standby time: Using the FIFO allows the host processor to stay in sleep mode for longer periods between readouts, reducing overall system power consumption and achieving a standby current as low as 0.5 μA.
• Grove Interface: Features a Grove 4-pin connector, ensuring a "Plug and Play" experience to connect with mainstream hardware platforms like Arduino, Raspberry Pi, Micro:bit and many more.

Specifications:

             Parameter                             Description

• Supply Voltage             :              3.3V
• Interface                       :        I2C and SPI

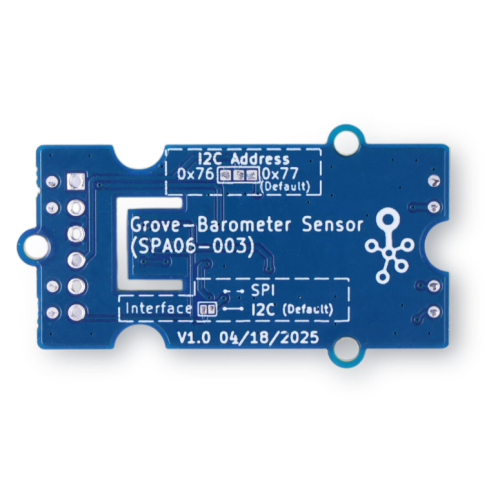

• I2C address                  :        0x77(default)

                                                :           0x76

Barometric Pressure Measure

• Range                           :   300~1100 hPa
• Absolute Accuracy       :     ±0.3 hPa

Temperature Measurement

• Range                           :  -40℃ to +85℃
• Accuracy                      :  ±1℃
• Dimensions                  : 40mm x 20mm x 6.5mm

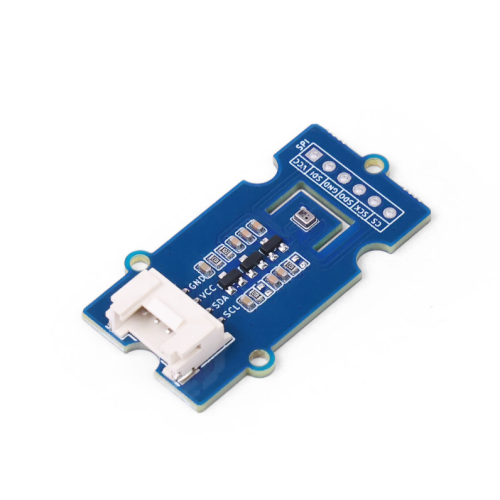

Hardware Overview:

Applications:

• Weather Station and Weather Sensing
• Measure Temperature, Pressure, and Altitude

Certifications:

• HSCODE : 9025900000
• USHSCODE : 9025900600
• UPC
• EUHSCODE : 9013101000

• COO        : CHINA

Documentation:

• SPA06-003 Datasheet
