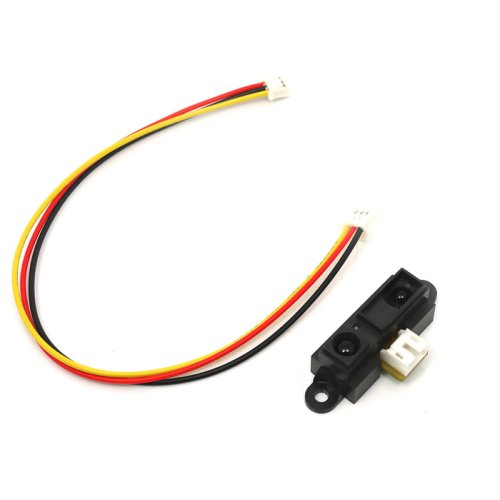

The 80cm Infrared Proximity Sensor is a General Purpose Type Distance Measuring Sensors, this sensor takes a continuous distance reading and returns a corresponding analog voltage with a range of 10cm (4") to 80cm (30"). Can be used in TVs,personal computers ,cars and so on.



Features



• Grove interface compatible

• Wide supply voltage range: 2.5V-7V



Interface



This sensor is quite small and use a tiny connector called the Japan Solderless Terminal (JST) connector. These connectors have three wires: ground, vcc, and the output. Because the sensor fire continuously and don't need any clocking to initiate a reading, it is easy to interface with any microcontroller. for the seeeduino, the wire convert the 3-wire to 4-wire ,to compatible with the twig interface of Grove .



For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.



Documents



Please visit our wiki for more info about this product. It will be appreciated if  you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.
