Thermocouples are very sensitive, requiring a good amplifier with a cold - compensation reference. The Grove - Temperature Sensor USES a K type thermocouple Temperature detection, with a Thermistor to detect The ambient Temperature as Temperature compensation. The detectable range of this Sensor is -50-600℃ , and The accuracy is ±(2.0% + 2℃).
Specifications:
- Voltage：3.3 ~ 5V
- Max power rating at 25℃ ：300mW
- Operating temperature range：-40 ~ +125 ℃
- The temperature measurement range is (-50 ~ +600℃)
- Amplifier output voltage range (0 ~ 3.3 V) mv
- Cold junction compensation (environment temperature measurement)
- Thermocouple temperature measurement accuracy of + / - 2.0% (+ 2 ℃)
Technical details:

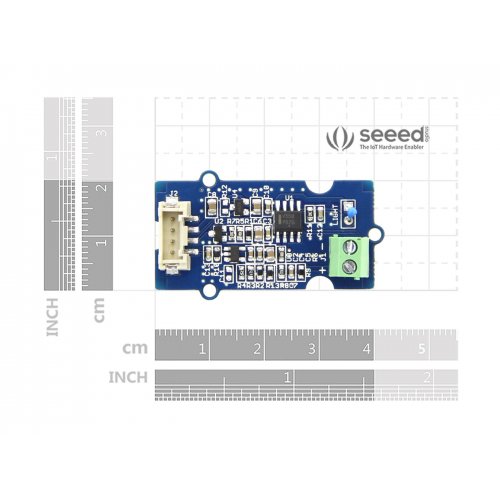

- Dimensions: 110mm x85mm x12.5mm
- Weight: G.W 30g
- Battery: Exclude
Package Includes:

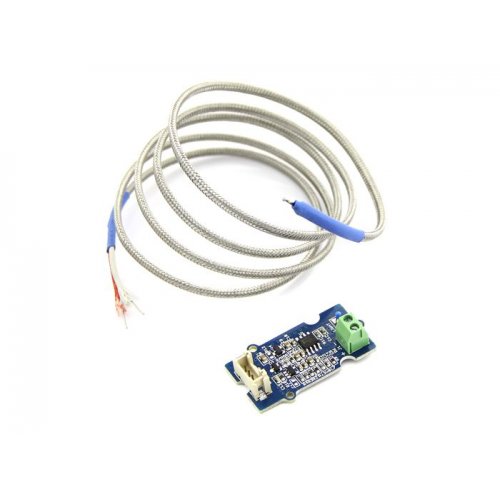

- 1 x Grove - High Temperature Sensor

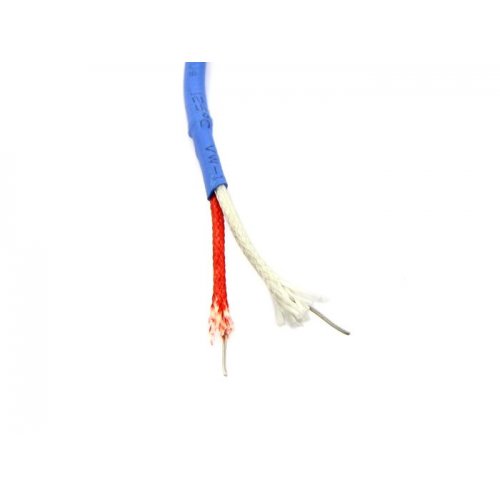

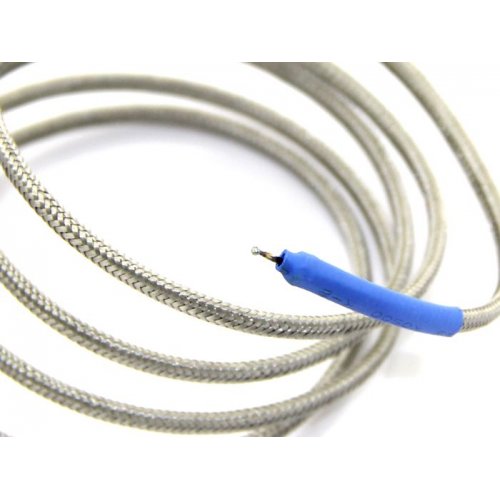

- 1 x Thermocouple Temperature Sensor
- 1 x 24AWG Grove Cable - 4P-4P-2.0-200mm

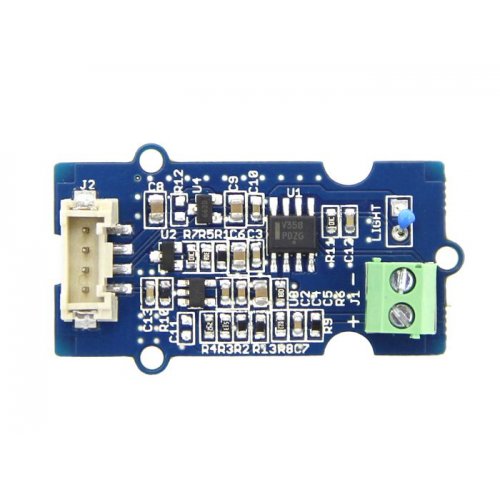

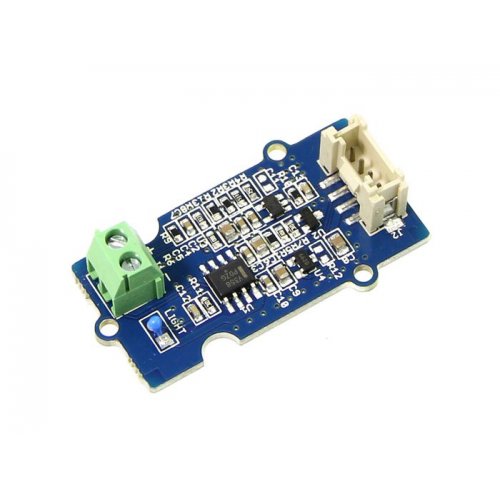

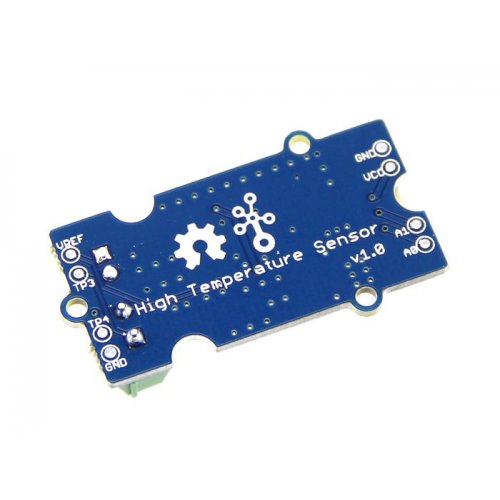

Grove - High Temperature Sensor
- Brand: Seeed Studio
- Product Code:Seeed-Grove-Temp-Sensor
- Reward Points:19
- Availability:Back-order
-
रo 2,238.46
- Ex Tax:रo 1,897.00
- Price in reward points:1897
-
- 7 or more रo 2,219.58
- 15 or more रo 2,201.88
- 35 or more रo 2,184.18
- 70 or more रo 2,166.48
