An OLED (organic light-emitting diode) has many advantages over traditional LCD displays, including a faster response speed, thinner profile, lower power consumption and excellent shock resistance. An OLED can be widely used in mobile devices for display applications. Used in conjunction with a mini Arduino-based microcontroller such as the Beetle or CurieNano, it is a straightforward process to make a simple wearable application.

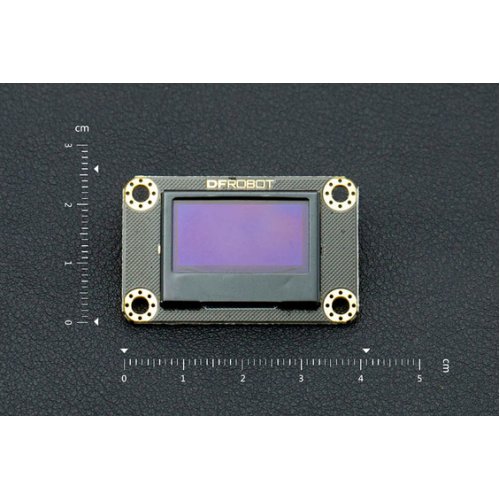

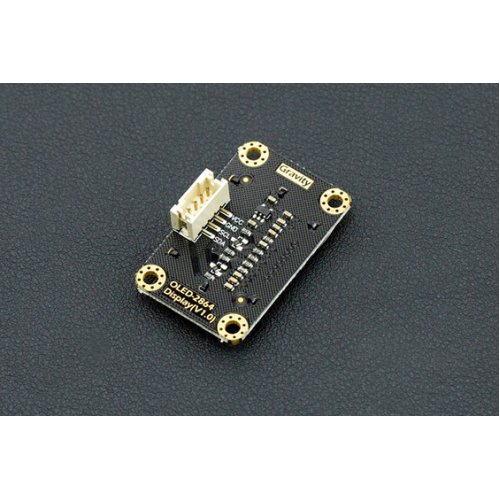

Our Gravity OLED 12864 display is a self-luminous display module with a blue background. The display areas is 0.96”and uses an IC SSD1306 chip. The OLED screen supports I2C communication and refresh rates of up to 60Hz. The module uses the Gravity I2C common interface for easy plug and play usage – meaning you can connect it without the need for wires - just plug it straight in to your device. The display bezel is constructed from aluminum alloy which protects the screen from scratches and damage.

FEATURES

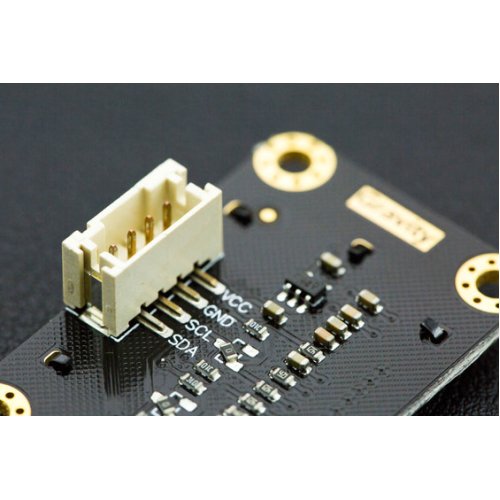

Supports Gravity-I2C interface, plug and play compatible
Metal bezel for ultimate protection
4 x M3 screw mount holes for simple installation
Supports Arduino/Genuino 101 devices

SPECIFICATION

Operating Voltage: 3.3V ~ 5V
Background Color: blue
Pixels: 128 columns X 64 Rows
Interface mode: Gravity-I2C
Scanning Rate: 60 fps
Brightness: 60 (Typ) cd / m2
Full screen power consumption: 22.75mA Approx.
Working Temperature: -30 ℃ ~ +70 ℃
Display Area: 21.744 × 10.864mm / 0.85 x 0.43”
Module Size: 41.20 × 26.20mm / 1.62 x 1.03”
Mounting Hole Size: 35 x 20 mm/ 1.38 x 0.78”
Module Weight: 15g

DOCUMENTS

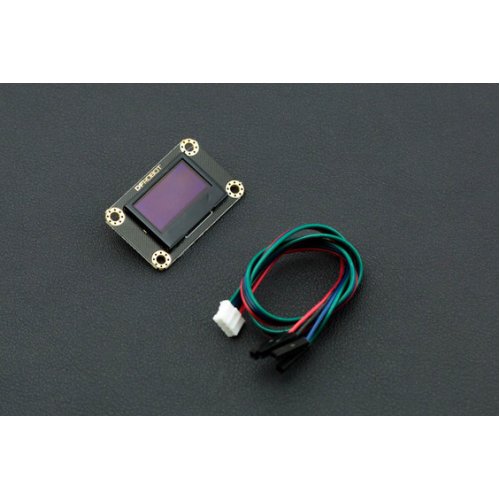

SHIPPING LIST

Gravity I2C OLED-2864 Display x1
Gravity I2C PH2.0-4P Cable x1

Gravity I2C OLED-2864 Display

Product Code:DFR-Gravity-I2C-OLED-2864-Display
Reward Points:15
Availability:In Stock

रo 1,706.28
रo 1,480.90
Ex Tax:रo 1,255.00
Price in reward points:1494
10 or more रo 1,699.20
20 or more रo 1,693.30
50 or more रo 1,648.46

Qty
