This is an arduino tilt sensor. It is used to detect orientation. Inside the sensor, there is a ball that make contact with the pins when the case is upright. Tilt the sensor over and the balls don’t touch, thus not making a connection.

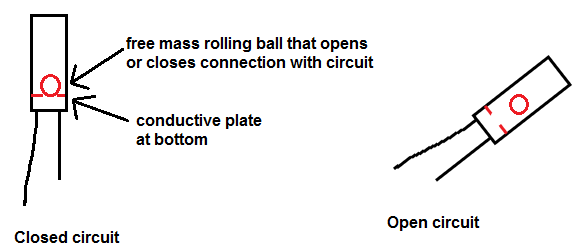

Here is the principle of tilt sensor to illustrate how it works:
Simple plug to our Arduino IO Sensor Expansion Shield, you can make amazing interactive projects.
As this sensor is now woking under 3.3V, it is now able to be compatible with Raspberry Pi. An Arduino Shield for Raspberry Pi B+/2B/3B will make it easy to use.
FEATURES
- Wide voltage range from 3.3V to 5V
- Standard assembling struct (two 3mm holes with multiple of 5cm as interval)
- Easily recognitive interfaces of sensors ("A" for analog and "D" for digital)
- High quality connector
- Immersion gold surface
SPECIFICATION
- Supply Voltage: 3.3V to 5V
- Interface: Digital

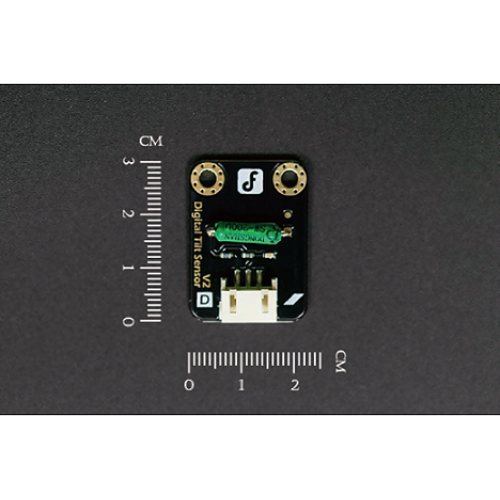

- Size:22x30mm (0.87 x 1.18 in)
DOCUMENTS
SHIPPING LIST
- Digital Tilt Sensor For Arduino x1

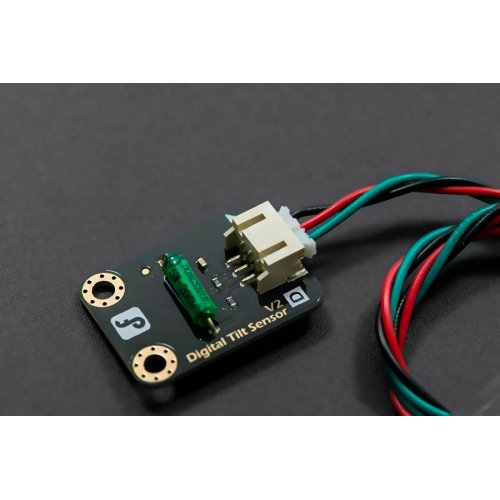

Gravity: Digital Tilt Sensor for Arduino / Raspberry Pi
- Brand: DFRobot
- Product Code:DFR-Digital-Tilt-Sensor
- Reward Points:2
- Availability:In Stock
- रo 194.70
-
रo 168.74
- Ex Tax:रo 143.00
- Price in reward points:171
-
- 165 or more रo 193.52
- 420 or more रo 188.80
