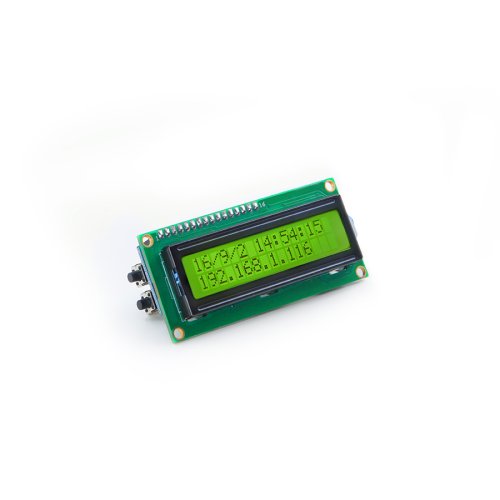

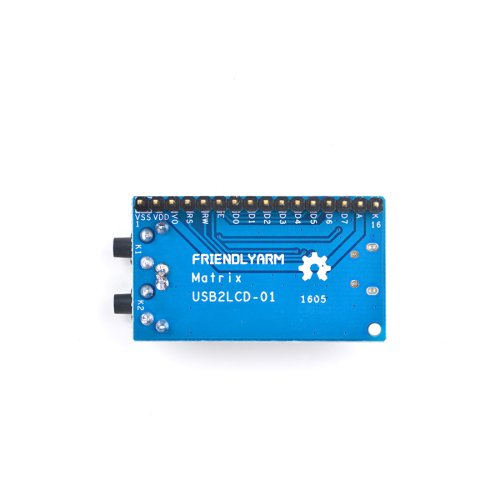

The LCD2USB Module is a simple and easy to use LCD module. It converts a parallel port to a USB port. It work with LCD4Linux, LCD Smartie, LCD Proc. There are plenty of open source code samples available on the internet.

It works with various LCDs: 2x16, 2x20, 4x20, 4x27, 4x40 and etc. It has two function keys which can be configured by users.

The LCD unit usually communicates via a parallel interface which needs multiple IO resources. This module uses the AX2210 MCU which converts signal to commands and transmit to the LCD.

Features:

• MicroUSB interface
• Supports LCD4Linux, LCD Smartie, LCD Proc
• Support various LCDs
• 2 x User key
• PCB Dimension (mm): 24x42

Package Includes:

• 1 x LCD2USB Module
• 1 x LCD1602
