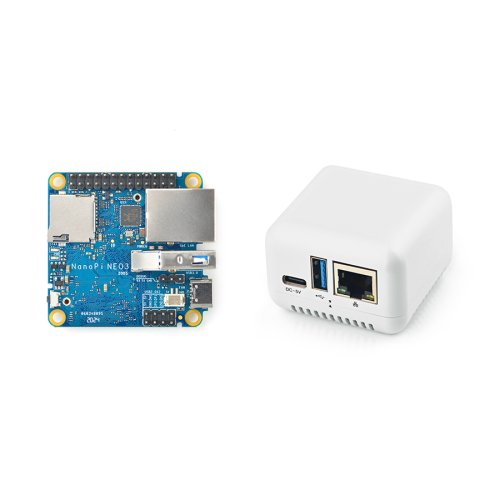

The NanoPi NEO3 is a newly released super tiny ARM board by FriendlyElec. It uses Rockchip’ s 64-bit quad-core SoC
- RK3328 (ARM Cortex-A53).
- It has 1GB/2GB 32-bit DDR4 RAM. A UbuntuCore and Friendlywrt image files are ready for it.It has one Gbps Ethernet with a unique MAC address, one USB 3.0 Type A port, two 2.54mm USB 2.0 pinheaders, one MicroSD card slot and various GPIO pins.
- These features make it especially suitable for applications that require high data throughput , speedy data transmission and high performance. Hobbyists and makers will just love it.
Hardware Specifications:
| CPU | Model: Rockchip RK3328 |
| Number of Cores: Quad-Core Cortex-A53 64-bit | |
| Frequency: 4 x Cortex-A53 Up to 1.3GHz | |
| Memory | RAM: 1GB/2GB 32-bit DDR4 |
| Storage | MicroSD Slot: MicroSD x1 for external storage up to 128GB |
| Connectivity | Ethernet: Gbps Ethernet x1 with unique MAC |
| USB | USB 3.0 Host x1: USB Type A |
| USB 2.0 Host x2: 2.54mm 4x2pin-header | |
| Type-C x1: Power Input Only | |
| Pin-header | GPIO: 2.54mm pitch 26pin-header, include I2C, UART, SPI, I2S, GPIO |
| Serial Debug Port x1: 2.54mm pitch 3pin-header, 115200bps | |
| LED | PWR LED(Red) x1 |
| STAT LED(Green) x1 | |
| Key | User Key x1 |
| Working Temperature | -20℃ to 70℃ |
| Power | 5V/1A, via Type-C or GPIO |
Software:
OS Support FriendlyWrt 19.07-snapshot
Ubuntu Core 18.04 (64-bit)(Linux-5.4 + U-boot-2017.11)
Package Includes:
- Bare Board
- 1 x NanoPi NEO3
OR
- Combo with Case (OPTIONAL)
- 1 x NanoPi NEO3 (Combo - with Heat sink)
| Processor Specifications | |
| Processor | Rockchip RK3328 |
| Operating System (OS) | FriendlyWrt 19.07-snapshot, Ubuntu Core 18.04 (64-bit)(Linux-5.4 + U-boot-2017.11) |
| Number of Cores | Quad-Core Cortex-A53 64-bit |
| Speed | 4 x Cortex-A53 Up to 1.3GHz |
| Board Specifications | |
| Storage | MicroSD x1 for external storage up to 128GB |
| GPIO | 2.54mm pitch 26pin-header, include I2C, UART, SPI, I2S, GPIO, Serial Debug Port x1: 2.54mm pitch 3pin-header, 115200bps |
| Memory Specifications | |
| RAM | 1GB/2GB 32-bit DDR4 |
| Connectivity | |
| USB | USB 3.0 Host x1: USB Type A, USB 2.0 Host x2: 2.54mm 4x2pin-header, Type-C x1: Power Input Only |
| Ethernet | Gbps Ethernet x1 with unique MAC |
| Electrical Specifications | |
| Output Power | 5V/1A, via Type-C or GPIO |
NanoPi NEO3-LTS
- Brand: FRIENDLYARM
- Product Code:FARM-NanoPi-NEO3
- Reward Points:35
- Availability:In Stock
- रo 4,114.66
-
रo 3,456.22
- Ex Tax:रo 2,929.00
- Price in reward points:3487
-
- 4 or more रo 4,081.62
- 8 or more रo 4,048.58
- 20 or more रo 4,015.54
- 40 or more रo 3,982.50
