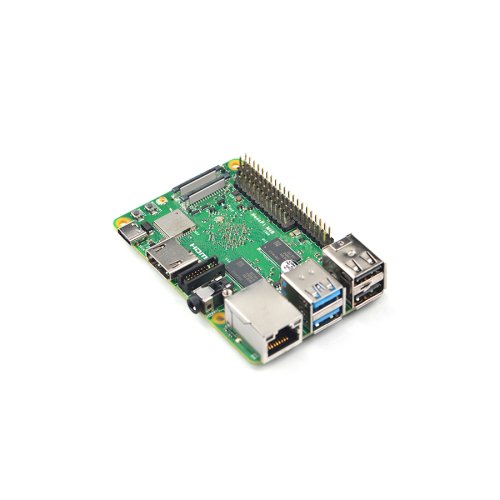

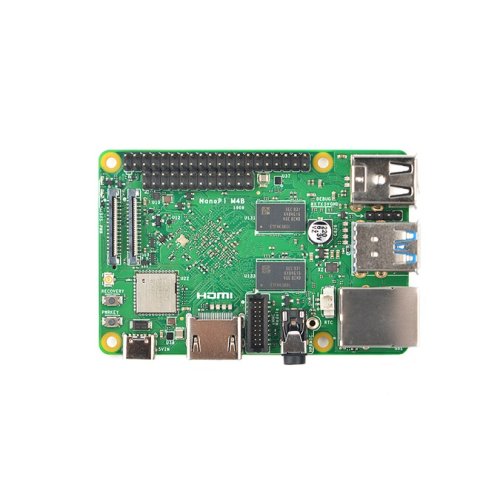

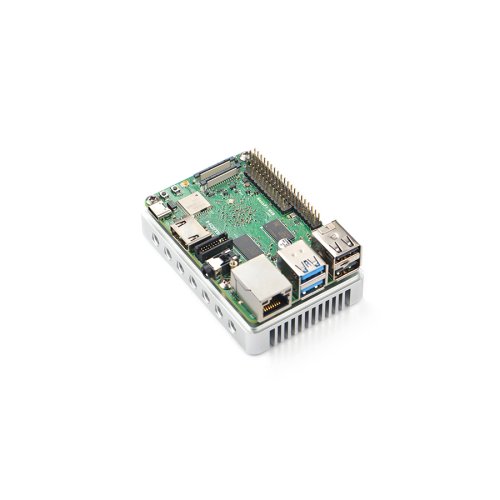

The NanoPi M4B is a RK3399 SoC based ARM board. It has the same form of factor as the RPi B3+ and has ports and interfaces compatible with RPi B3+ too. On a 85 x 56 mm compact board there are rich hardware resources. These features make it a good platform for rapid product prototyping and various applications.

The NanoPi M4B has an onboard 2.4G & 5G dual-band WiFi + Bluetooth 5.0 combo wireless module, two USB3.0 host, two USB2.0 Host, one Gbps Ethernet port, one HDMI 2.0 Type A port, one 3.5mm audio jack and one Type-C for Power Supply. In addition it has a RPi compatible 40-pin connector, dual MIPI-CSI camera interface, PCIe x2, eMMC socket, RTC port and etc.

The NanoPi M4B supports Ubuntu Desktop 18.04(64-bit), Lubuntu 16.04(32-bit), Ubuntu Core 18.04(64-bit), Android 8 and Lubuntu Desktop with GPU and VPU acceleration. With these rich resources and powerful performance it can be widely used in applications of machine learning, AI, deep learning, robots, industrial control, industrial cameras, advertisement machines, game machines, blockchain and etc.

Hardware Specifications:

CPU	Model: Rockchip RK3399 Number of Cores: 64-bit Dual Core Cortex-A72 + Quad Core Cortex-A53 Frequency: Cortex-A72(up to 2.0GHz), Cortex-A53(up to 1.5GHz)
GPU	Mali-T864 GPU，supports OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11, and AFBC
VPU	4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc
Power Management	RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, software power-down, RTC wake-up, system sleep mode
Memory	RAM: Dual-Channel 2GB DDR3
Storage	eMMC: no Onboard eMMC, but has a eMMC socket MicroSD Slot: MicroSD x1 for external storage up to 128GB
Connectivity	Ethernet: Native Gigabit Ethernet with unique MAC address Wi-Fi/BT: 802.11a/b/g/n/ac, Bluetooth 5.0, Wi-Fi and Bluetooth combo module Antenna x1: IPX-I Connector
Audio	Audio Output: 3.5mm Dual channel headphone jack, or HDMI Audio Input: Microphone input interface x1
USB	USB 3.0 x2: Native USB 3.0 Type-A ports USB 2.0 x2: Native USB 2.0 Type-A ports USB Type-C x1: Power Input Only
Video Input	one or two 4-Lane MIPI-CSI, dual ISP, up to 13MPix/s，supports simultaneous input of dual-camera data
Video Output	HDMI x1: HDMI 2.0a, supports 4K@60Hz，HDCP 1.4/2.2 4-Lane MIPI-DSI x1
Pin-header	GPIO1: 40pin, 2.54mm pitch pin-header 3 X 3V/1.8V I2C, up to 1 x 3V UART, 1 X 3V SPI, 1 x SPDIF_TX, up to 8 x 3V GPIOs 1 x 1.8V 8 channels I2S Serial Debug Port x1: 2.54mm pitch 4-pin-header, 3V level, 1500000bps GPIO2: 24pin, 2.54mm pitch pin-header PCIe x2 PWM x1, PowerKey, IR_RX
LED	Power LED(Red) x1 GPIO Controlled LED(Green) x1
Others	RTC: 2 Pin 1.27/1.25mm RTC battery input connector Working Temperature: -20℃ to 70℃
Power	DC 5V/3A via Type-C or GPIO header

OS Support	Android 8.1 Android 10 Lubuntu 16.04 (32-bit) FriendlyCore 18.04 (64-bit) FriendlyDesktop 18.04 (64-bit) FriendlyWrt 19.07.1 (64-bit)
BSP version	Linux-4.4-LTS U-boot-2014.10
